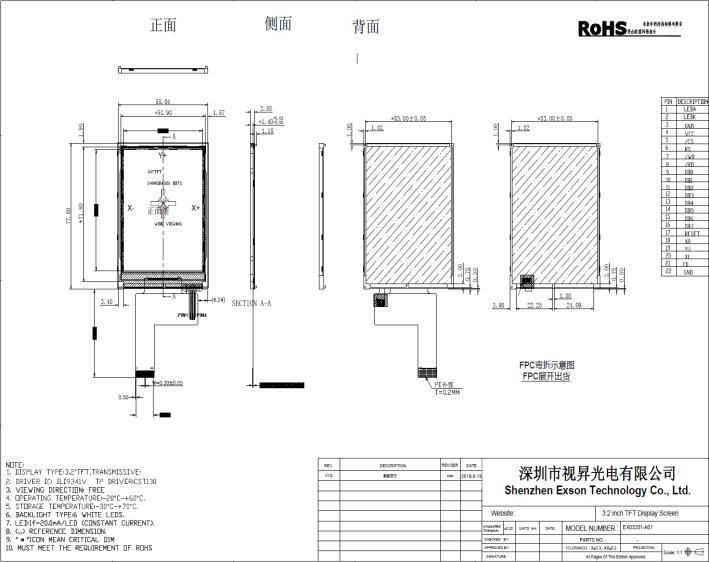

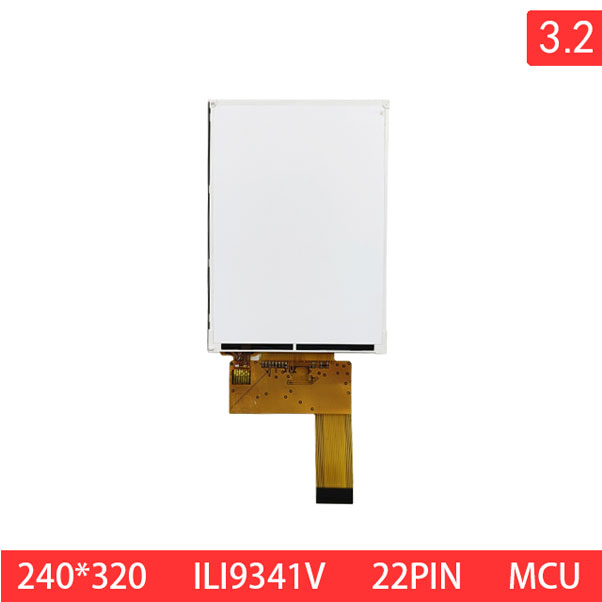

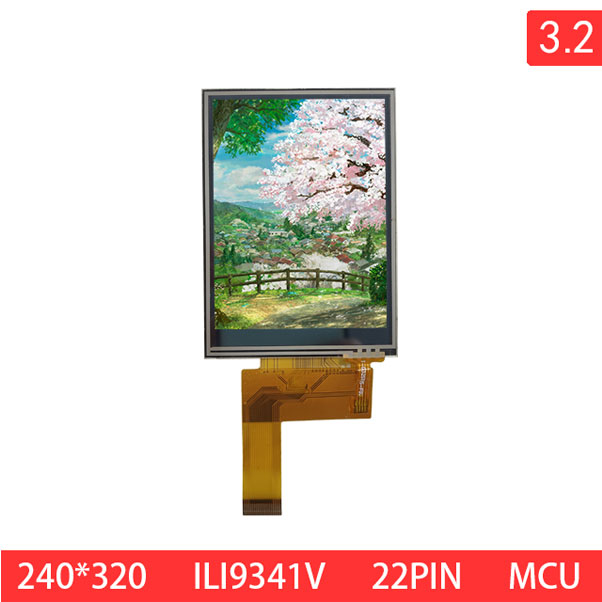

EX03201-A01 is a 3.2-inch diagonal 240x320 portrait standard TFT LCD display module. The dimension size of this module is 55.04×77.5 mm, size of active area is 48.6×64.7 mm. This TFT display module uses ILI9341 driver IC which supports MCU8BIT interface. This 3.2-inch TFT LCD module has brightness 300 cd/m2 with contrast ratio (typical value) 900:1. The module works within the temperature -20 to +60℃, storage temperature ranges from -30 to +70℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment,etc.
No. | Item | Specification |
1 | LCD size | 3.2 inch |
2 | Resolution | 240(RGB)×320 |
3 | Active area | 48.6(W)×64.7(H)mm |
4 | Module size | 55.04(W)×77.5(H)×2.5(T)(Exclude FPC)mm |
5 | Polarizer | Transmissive |
6 | Driver IC | ILI9341 |
7 | Interface | MCU8BIT |
8 | Brightness | 300cd/m² |
| 9 | Backlight Color | White |
| 10 | Contrast Ratio | 900:1 |
| 11 | Viewing Direction | All |
