EX02301-A01 is a 2.3 inch, TN TFT LCD module with transmissive mode. Its resolution is 320x240dots (320 vertical by 240 horizontal pixel) and every pixel is made up of three vertical strips of Red, Green and Blue dots. This miniature 2.3 inch TFT module has built-in IC ILI9342C supporting MUC serial interface. The brightness is 300 cd/m2 .Operating temperature covers from -20℃~+70℃, storage temperature range is from -30℃~+80℃.
No. | Item | Specification |
1 | LCD size | 2.3 inch |
2 | Resolution | 320（RGB）x240 |
3 | Active area | 46.75(W)×35.06(H)mm |

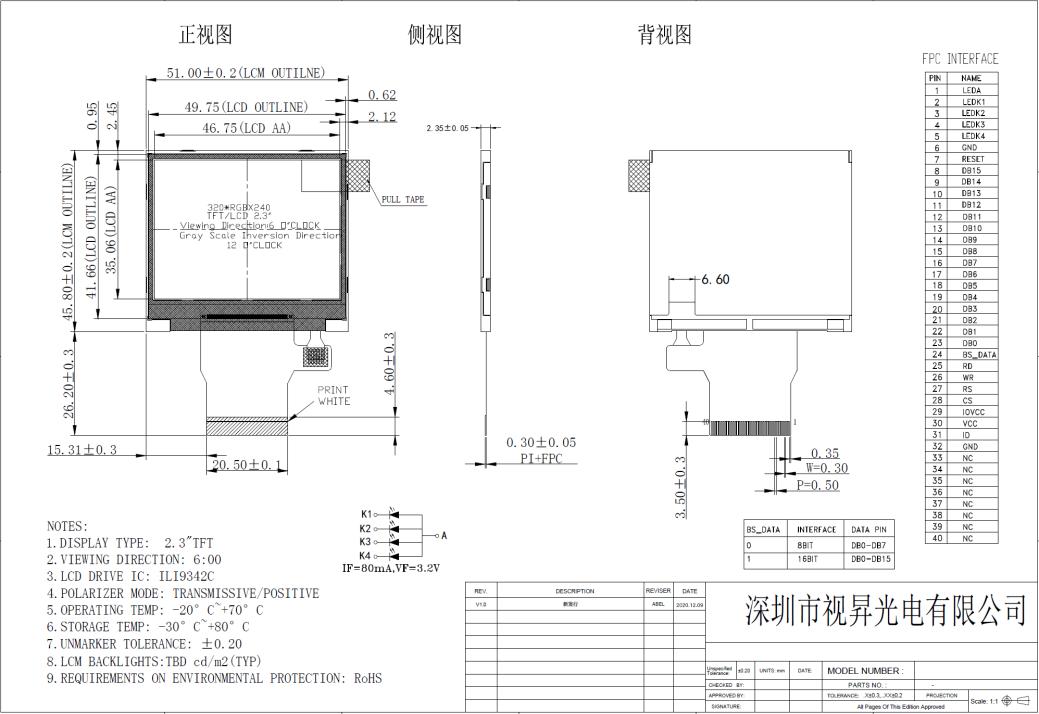

4 | Module size | 51.00(W)×45.80(H)×2.35(T)(Exclude FPC)mm |
5 | Viewing Direction | 6 o'clock |
6 | Driver IC | ILI9342C |
7 | Polarizer | Transmissive |
8 | Operating temperature | -20℃-70℃ |
| 9 | Storage temperature | -30℃~+80℃ |
| 10 | Brightness | 300cd/m2 |
This single-display module is suitable for use in security, handheld devices, instruments and meters, POS machines, police law enforcement instruments, military handheld, vehicle electronics, industrial control equipment and instruments, medical equipment, smart home, Internet of things, new retail, household appliances, small consumer electronic products, and other industries.
