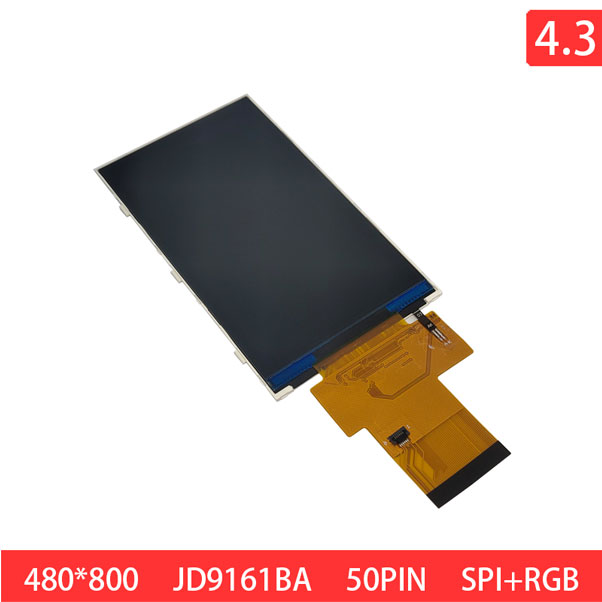

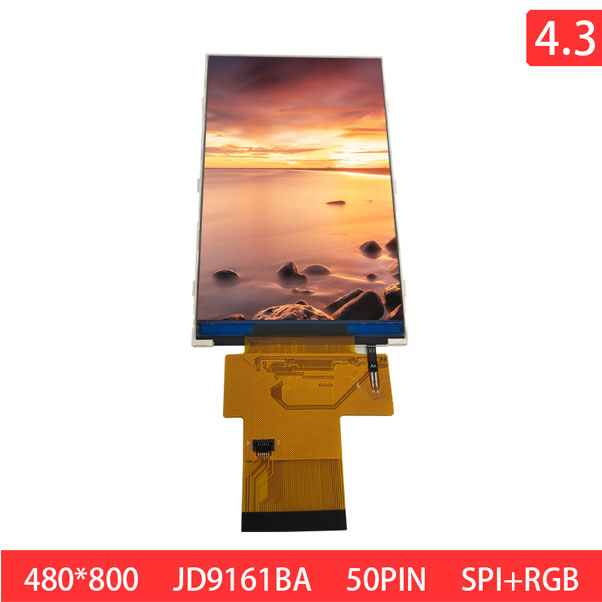

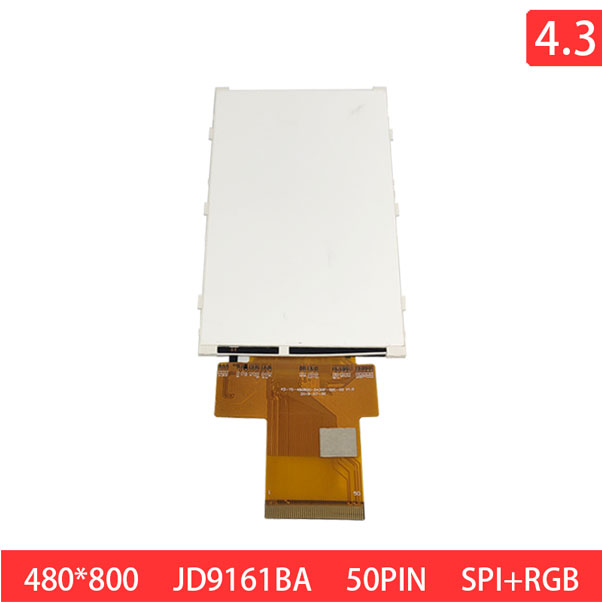

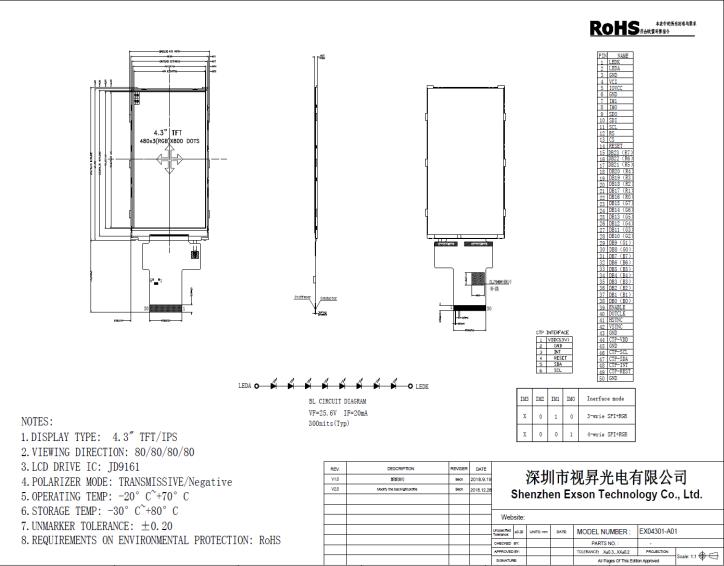

EX04301-A01 is a 4.3-inch diagonal 480x800 portrait standard TFT LCD display module. The dimension size of this module is 62.86(W)×105.75(H) mm, size of active area is 56.16(W)×93.6（H） mm. This IPS TFT display module uses JD9161BA driver IC which supports RGB interface. This 4.3-inch TFT LCD module has brightness 300 cd/m2 with contrast ratio (typical value) 900:1. The module works within the temperature -20 to +70℃, storage temperature ranges from -30 to +80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment,etc.
Item | Specifications |
LCD size | 4.3 Inch |
Resolution | 480(RGB)×800 |
Active area | 56.16(W)×93.6(H)mm |
Module size | 62.86(W)×105.75(H)×2(T)(Exclude FPC)mm |
Polarizer | Transmissive |
Driver IC | JD9161BA |
| Interface | RGB24 |
| Brightness | 300cd/m2 |
| Backlight Color | White |
| Contrast Ratio | 900:1 |
Viewing Direction | All |
7.0 Inch 1024x600 WSVGA 40PIN LVDS IPS 450nits 1 TFT LCD Display Module
This single-display module is suitable for use in Industrial control.products. The LCD adopts one backlight with 27 High brightness white LEDs.Construction: 7.0〞а-Si color TFT-LCD ,White LED backlig...

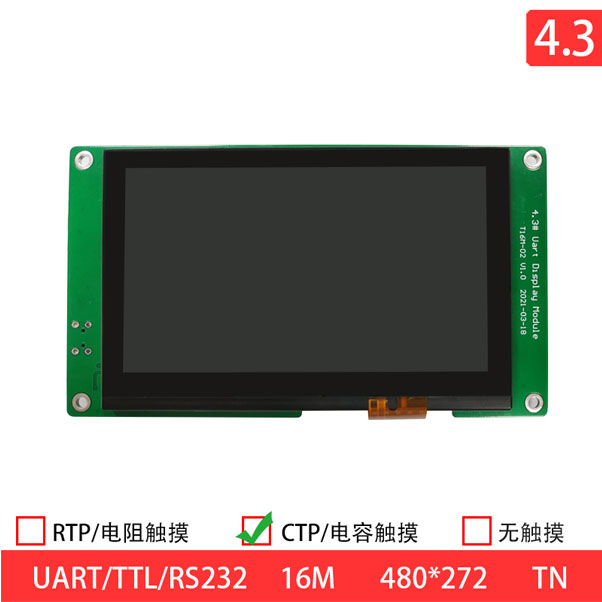

4.3 Inch 480x272 HVGA 6PIN UART TN 220nits TFT LCD Display Module
