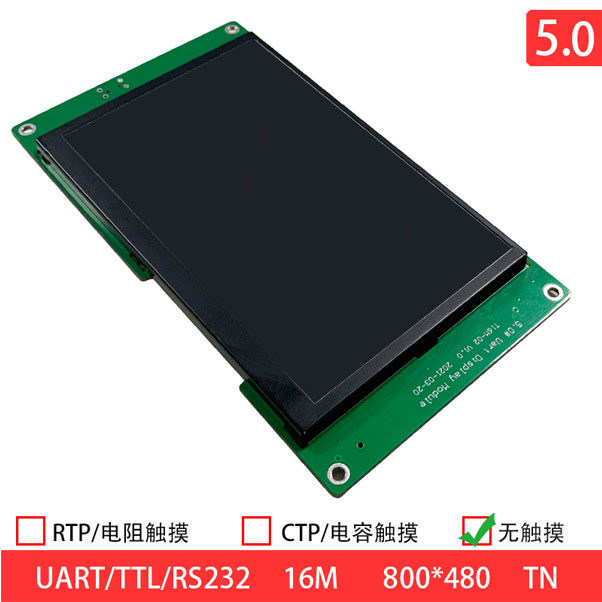

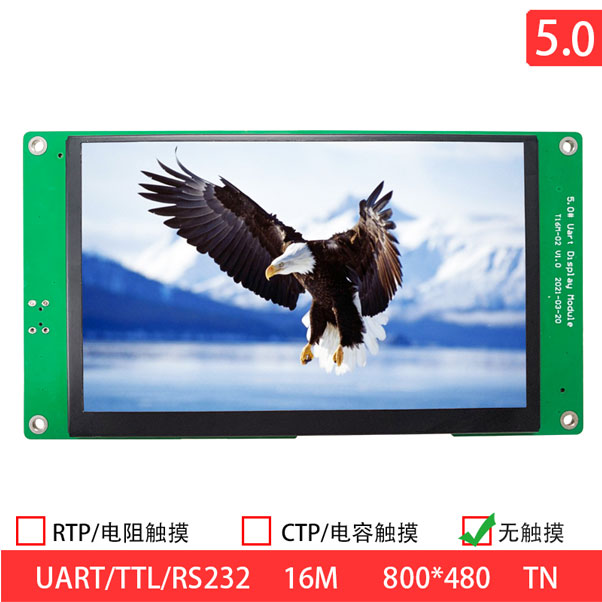

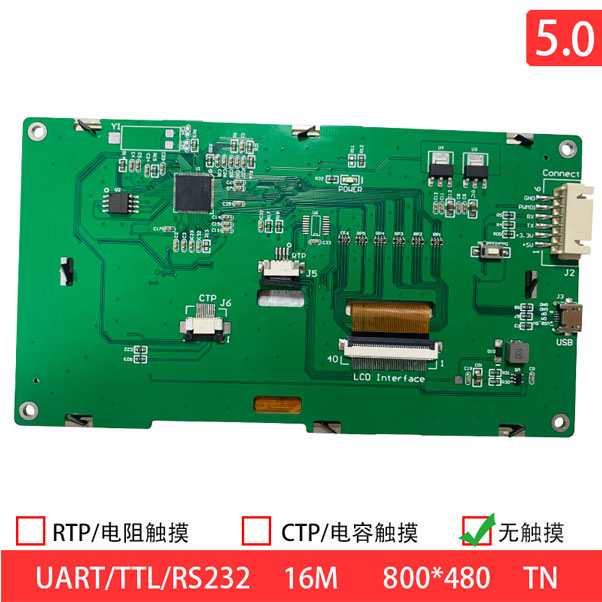

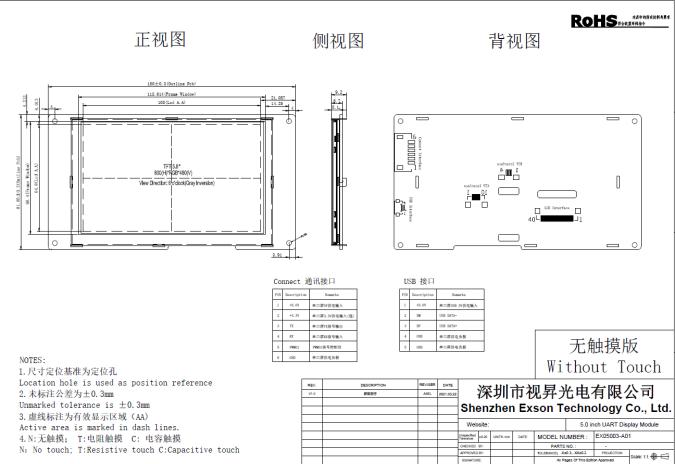

EX05003-A01 is a 5.0 inch, UART TN TFT LCD module . The module dimension is 81.85(W)×150(H); active area 64.8(W)×108(H) mm (5.0"diagonal). Its resolution is 800x480 pixels (width 800pixels x height 480 pixels) . This 5.0 inch UART TFT LCD display module has built-in IC ST7262 supporting RS232/TTL interface. The brightness is 250 cd/m2 . Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment,etc.
Item | Specifications |
LCD size | 5.0 inch |
Resolution | 800×480 |
Active area | 64.8(W)×108(H) |
Module size | 81.85(W)×150(H)×9.2(T) |
| Contrast Ratio | 400:1 |
| Interface | RS232/TTL |
| Brightness | 250cd/m2 |
| Display Colors | 65K |
| Driver IC | ST7262 |
