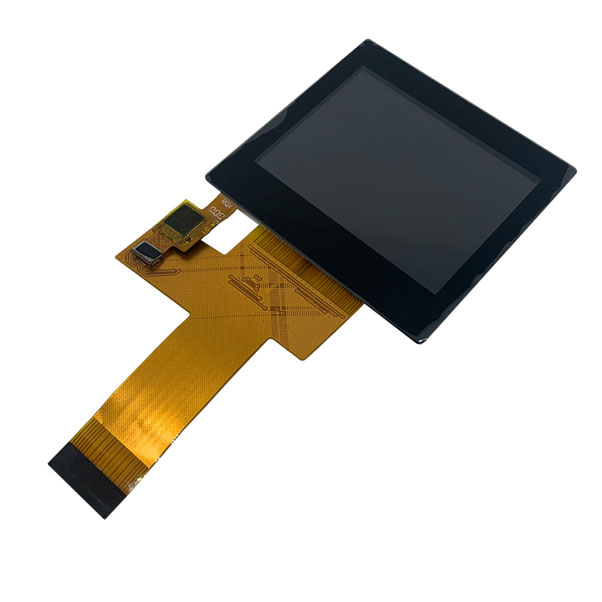

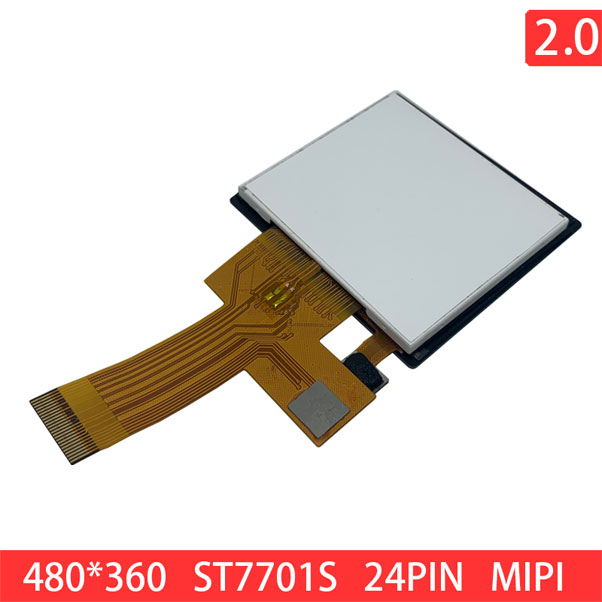

EX02002-A01 is a 2.0inch, IPS TFT LCD module with transmissive mode. Its resolution is 480×360dots (480 vertical by 360 horizontal pixel) and every pixel is made up of three vertical strips of Red, Green and Blue dots. This miniature 2.0 inch TFT module has built-in IC ST7701S supporting MIPI serial interface. The brightness is 250 cd/m2 with contrast ratio 1000:1.Operating temperature covers from -20℃~+70℃, storage temperature range is from -30℃~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment,etc.
No. | Item | Specification |
1 | LCD size | 2.0inch |
2 | Resolution | 480(RGB)×360 |
3 | Active area | 40.8(W)×30.6(H) |
4 | Module size | 49.1(W)×45.96(H)×2.53(T)(Exclude FPC)mm |
5 | Interface | MIPI1 |
6 | Polarizer | Transmissive |
7 | Brightness | 250cd/m2 |
8 | Pixel arrangement | RGB vertical stripe |
| 9 | Back Light | 450cd/m² |
| 10 | Viewing Direction | All |
11 | Contrast Ratio | 1000:1 |
