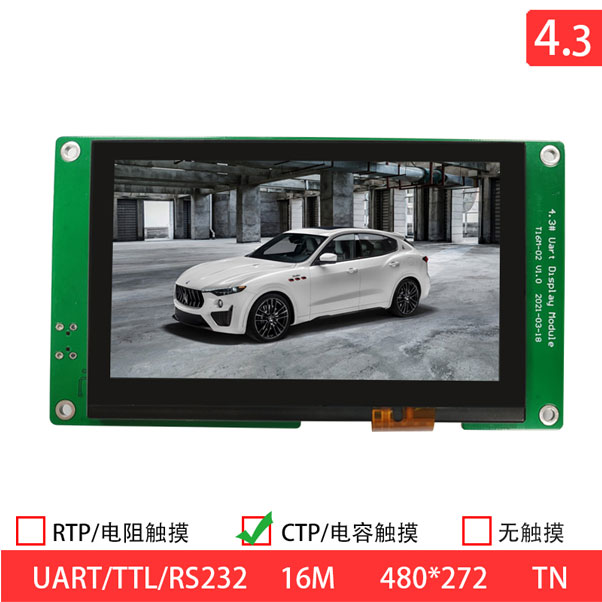

EX04302-A01 is a 4.3-inch color TFT display module with resolution of 480x272 pixels. The brightness is 220 cd/m2 and the contrast ratio is 400:1 (typical value). LCM voltage ranges from 3.3 V~5.0V. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃.It is used in intelligent products such as electric vehicle meters with screen, charging piles, air fryers, water heaters, washing machines, ovens and other applications requiring screen display.
Item | Specifications |
LCD size | 4.3 Inch |
Resolution | 480x272 |

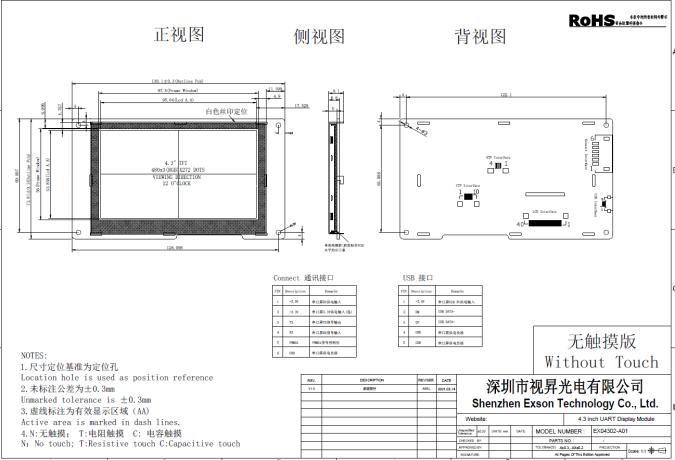

Active area | 95.04(W)x53.86(H) |
Module size | 130.1(W)x69.8(H)x9.1(T) |
Contrast Ratio | 400:1 |
Driver IC | ST7282 |

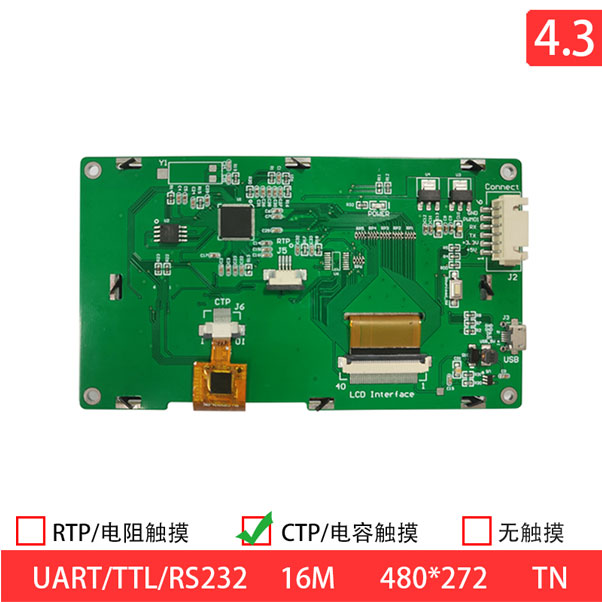

| Interface | UART RS232/TTL |
| Brightness | 220cd/m2 |
| Operating temperature | -20℃-70℃ |
| Storage temperature | -30℃~+80℃ |
Viewing Direction | 70/70/60/70 |
