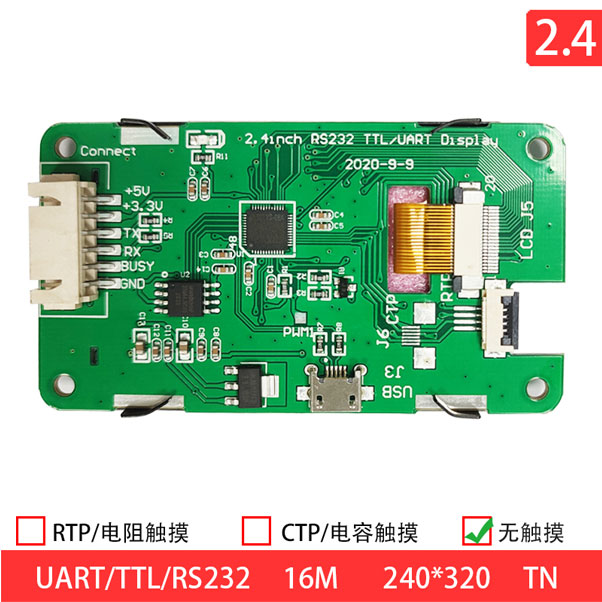

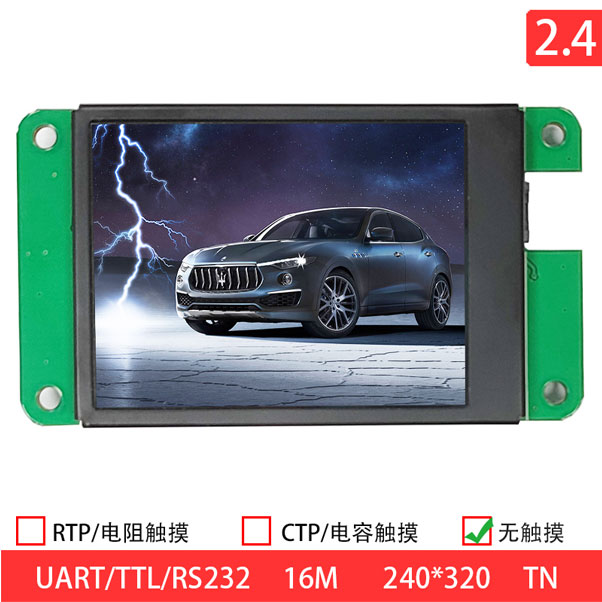

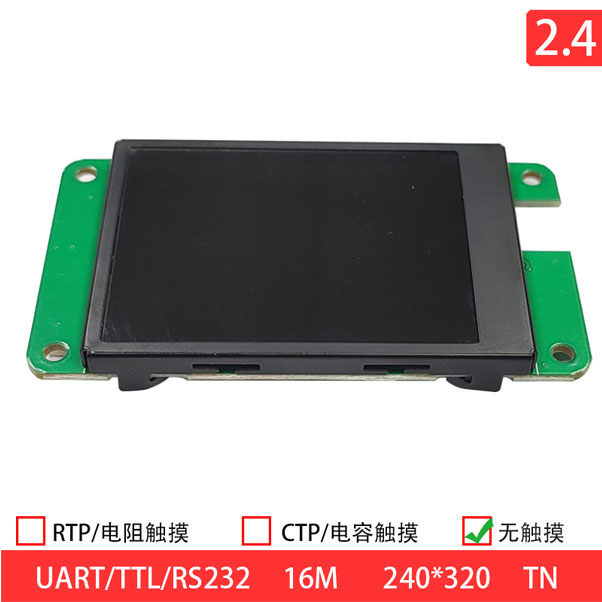

EX02402-A01 is a 2.4 inch, UART TN TFT LCD module . The module dimension is 44.02(W)×78.11(H); active area 36.72(W)×48.96(H) mm (2.4"diagonal). Its resolution is 240x320 pixels (width 240pixels x height 320 pixels) . This 2.4 inch UART TFT LCD display module has built-in IC ST7789V supporting RS232/TTL interface. The brightness is 220 cd/m2 . Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment,etc.
No. | Item | Specification |
1 | LCD size | 2.4 inch |
2 | Resolution | 240(RGB)×320 |
3 | Active area | 36.72(W)×48.96(H) |
4 | Module size | 44.02(W)×78.11(H)×7.56(T)mm |
5 | Viewing Direction | 12 O’CLOCK |
6 | Driver IC | ST7789V |
7 | Interface | UART RS232/TTL |
8 | Brightness | 220cd/m2 |
| 9 | color | 250cd/m2 |
| 10 | Operating temperature | -20℃-70℃ |
| 11 | Storage temperature | -30℃~+80℃ |
