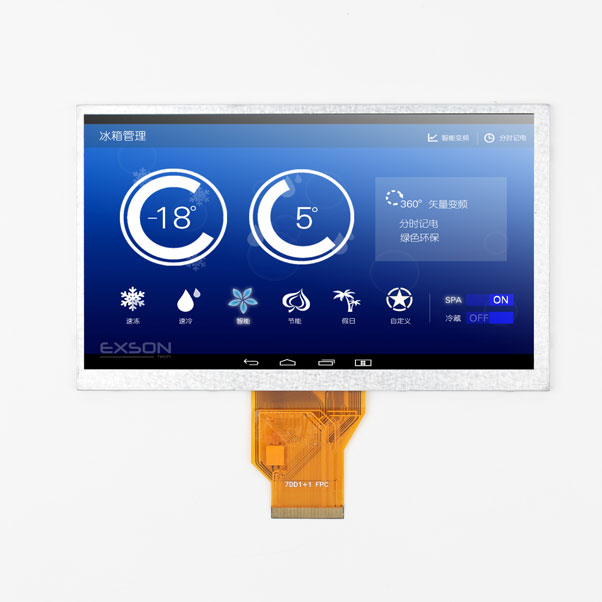

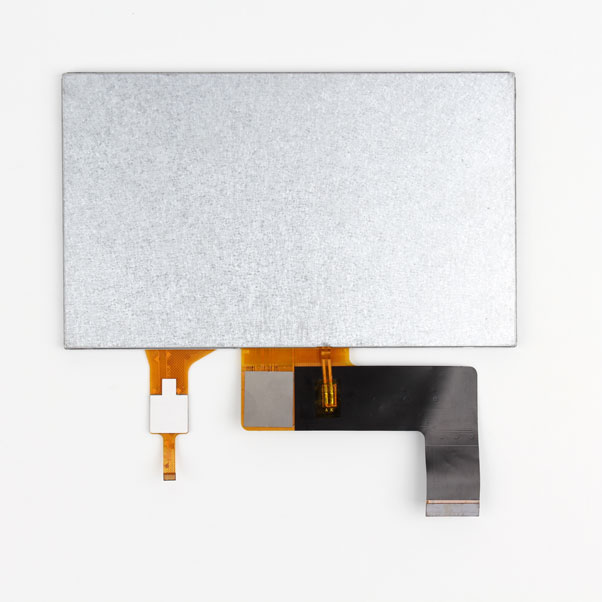

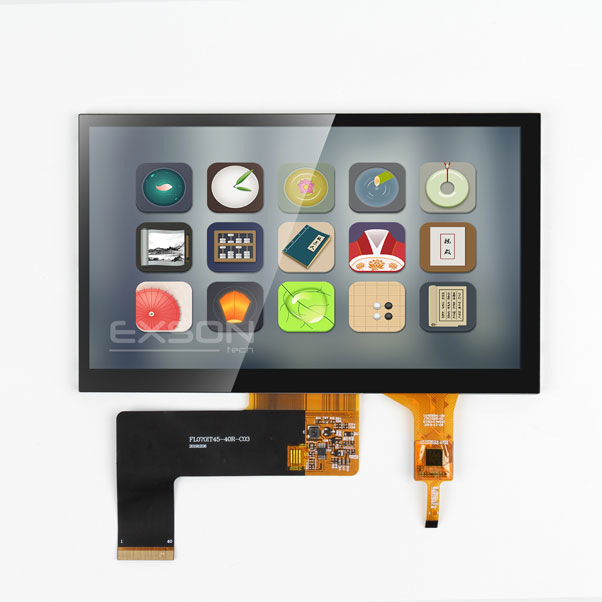

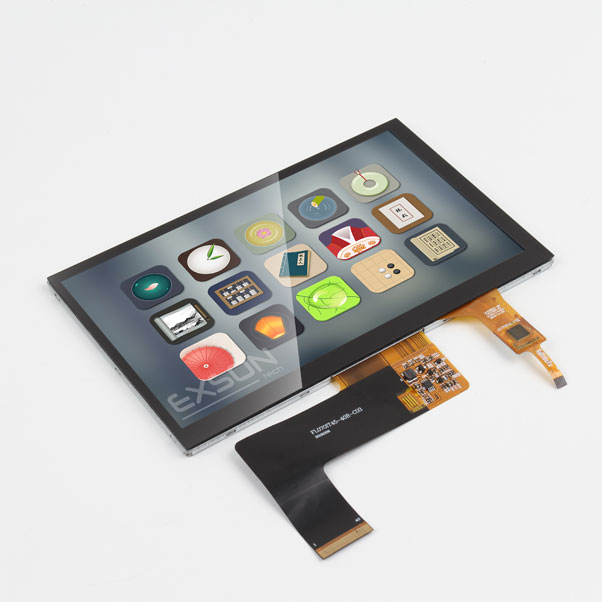

7.0 Inch 800x480 WVGA 40PIN TTL TN 450nits TFT LCD Display Module

Name: 7.0 Inch 800x480 WVGA 40PIN TTL TN 450nits TFT LCD Display Module
Brand: Shenzhen EXSON Technology CO., LTD.

This single-display module is suitable for use in Automobile products.

The LCD adopts one backlight with 27 High brightness white LEDs.

Construction: 7.0〞а-Si color TFT-LCD, White LED backlight.

General Specifications of 7.0 Inch 800x480 WVGA 40PIN TTL TN 450nits

No.	Item	Specification
1	LCD size	7.0inch
2	Resolution	800 x3(RGB)X480
3	Display mode	Normally White, Transmissive
4	Pixel pitch	0.0642 (W)X0.1790(H) mm
5	Active area	154.08 (W)X85.92 (H) mm

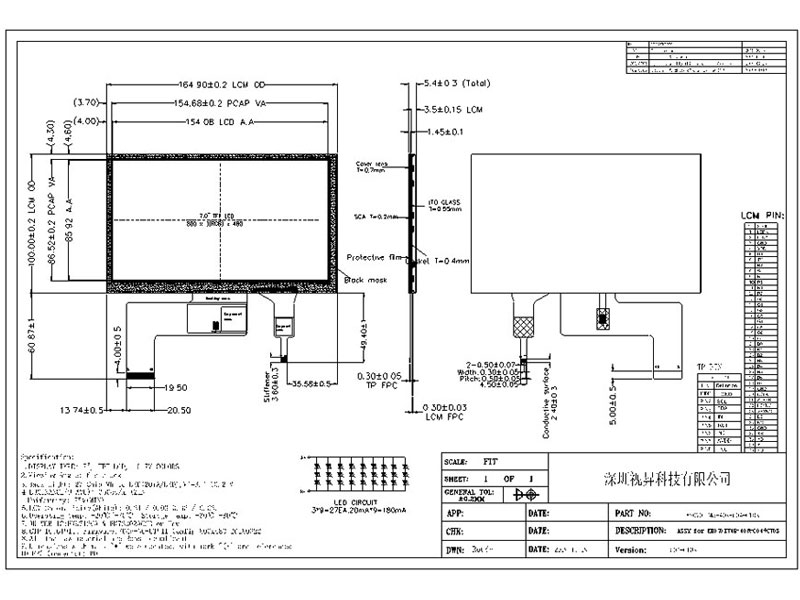

6	Module size	164.90 (W)X100.00(H)X5.4(D) mm
7	Pixel arrangement	RGB-vertical stripe
8	Interface	RGB
9	Surface treatment	Anti-Glare
10	Color arrangement	RGB-stripe
11	View direction(Gray Inversion)	6 O’clock

7.0 Inch 800x480 WVGA 40PIN TTL TN 450nits
