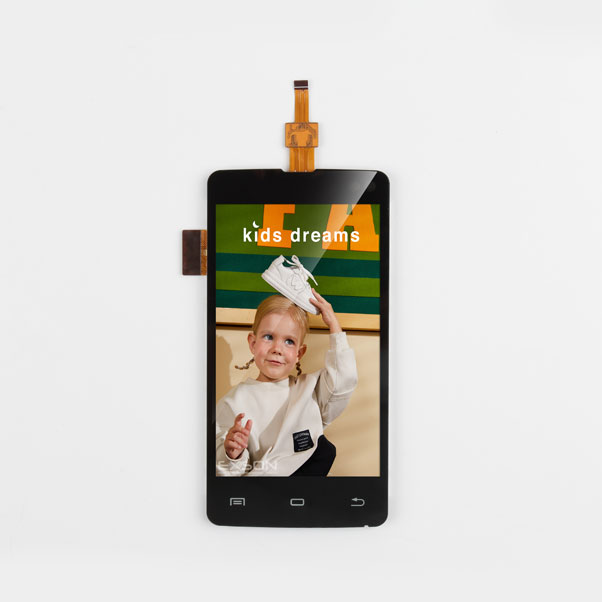

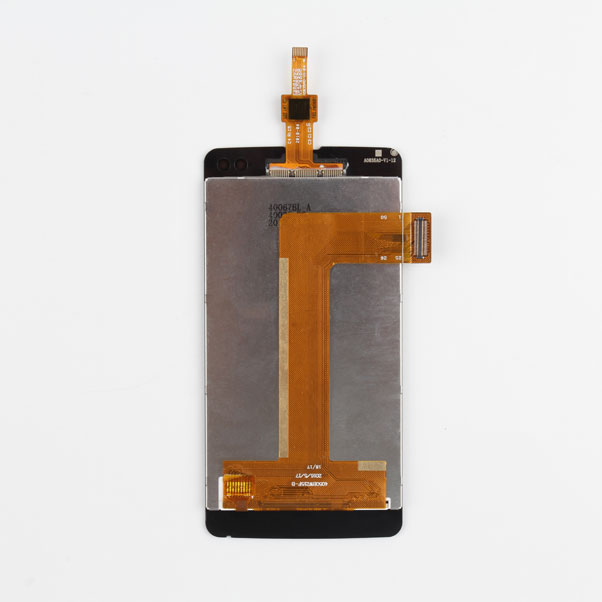

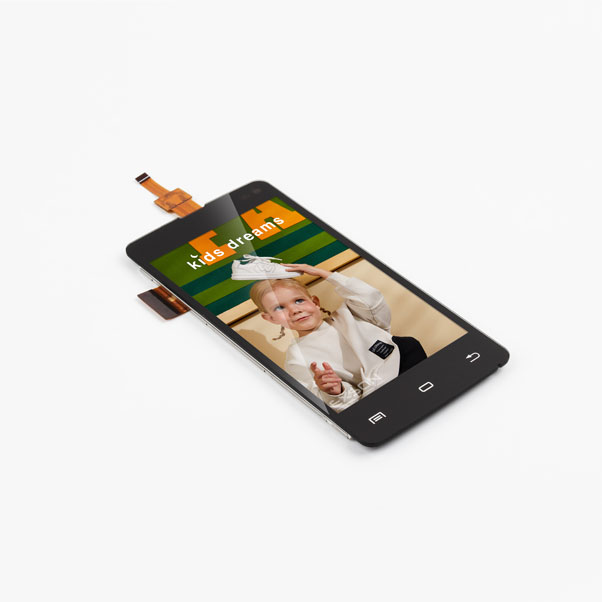

This single-display module is suitable for use in MB products. The LCD adopts one backlight with High brightness 8-lamps white LED. Construction: 3.97〞a-Si color TFT-LCD ,White LED backlight, FPC.
Item | Specifications | Unit |
LCD size | 3.97 | inch |
Dimensional outline | 57.14(H) ×97.3(V) ×3.48(D) | mm |
Active area | 51.84(H) × 86.40(V) | mm |
Pixel size | 108(H) ×RGB×108(V) | um |
Resolution | 480(RGB) ×800 | pixel |
Interface | MIPI | / |
Display mode | Normally black | / |
