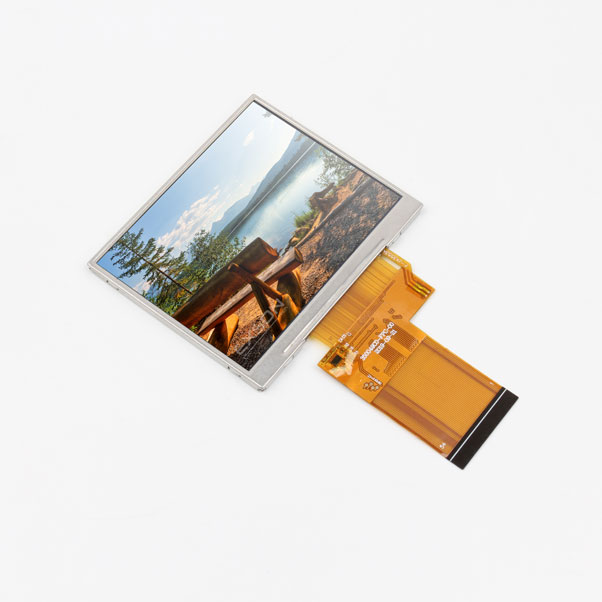

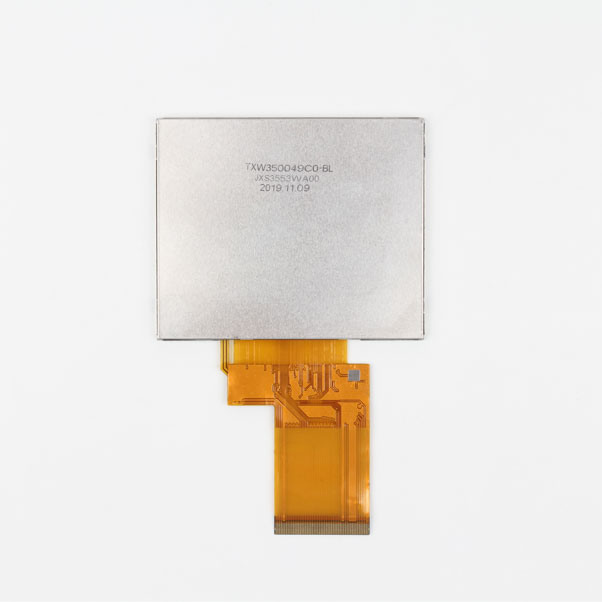

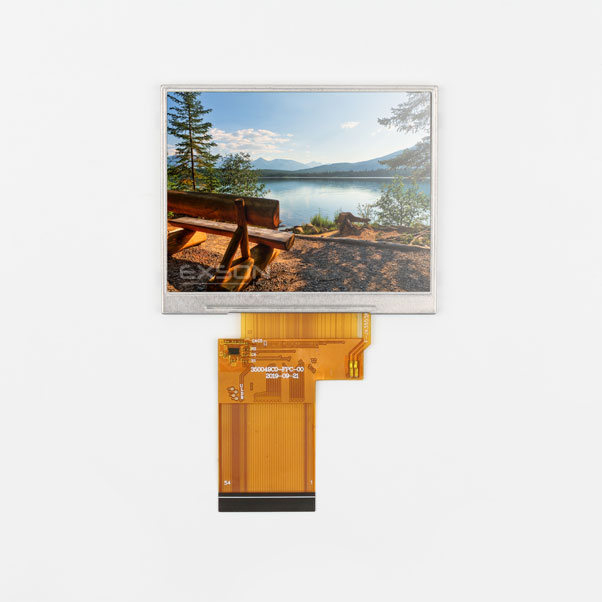

This single-display module is suitable for use in MB products .The LCD adopts one backlight with High brightness 6-lamps white LED. Construction: 3.5〞a-Si color TFT-LCD ,White LED backlight, FPC.
No. | Item | Specification | Unite |
1 | LCD size | 3.5 | Inch |
2 | Resolution | 640(RGB)X480 | Piexl |
3 | Display mode | Normally Black | / |
4 | Pixel pitch | 0.1095*0.1095 | mm |
5 | Active area | 70.08(H)×52.56(V) | mm |

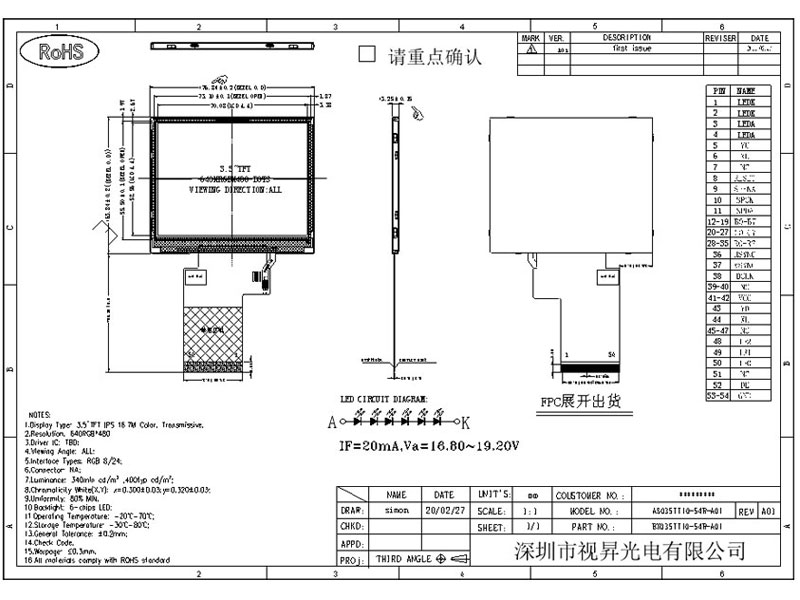

6 | Module size | 76.84(W)*63.84(H)*3.25(T) | mm |
7 | Pixel arrangement | RGB-stripe | / |
8 | Interface | 54 Pin RGB 24Bit | / |
9 | Backlight power consumption | 0.36 | w |
10 | Panel power consumption | 0.2 | w |
