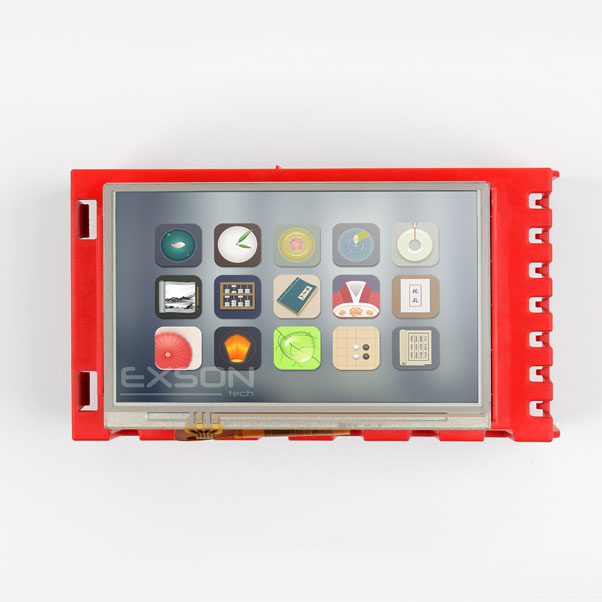

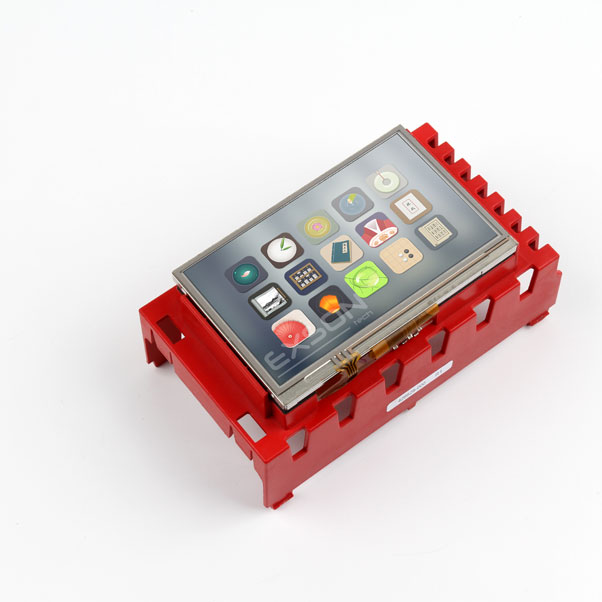

The LCD adopts one backlight with 10 High brightness white LEDs.Construction: 4.3〞а-Si color TFT-LCD ,White LED backlight . Operating temperature covers from -20℃~+70℃, storage temperature range is from -30℃~+80℃.This single-display module is suitable for use in automotive electronics, medical equipment, digital electronics, smart home, white appliances, etc.
Item | Specifications |
LCD size | 4.3 inch |
Resolution | 480 (RGB)X272 |
Active area | 95.04 (W)X53.86 (H) mm |

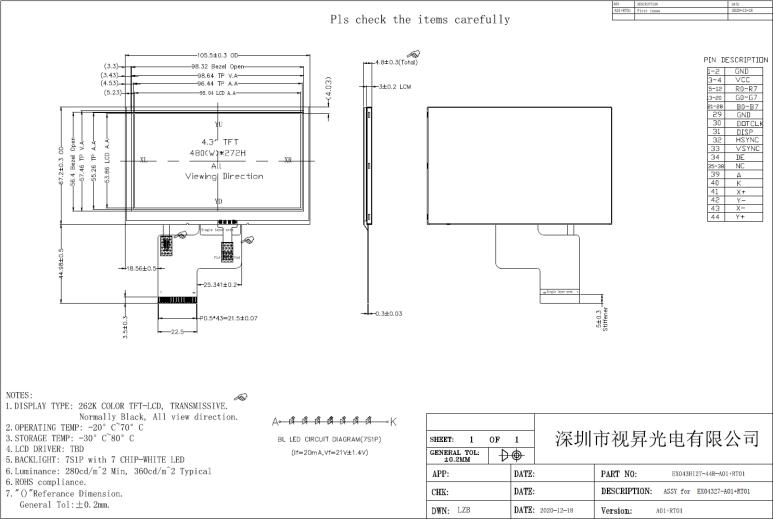

Module size | 105.5(W)X67.2(H)X4.8(D) mm |
Contrast Ratio | 800:1 |
Display mode | Normally White TN |
| Interface | TTL |
| Brightness | 360cd/m2 |
| Pixel arrangement | RGB-vertical stripe |
| Display Colors | 262K |
| Polarizer | Transmissive |
Viewing angle | All |
1.3 Inch 240x240 13PIN SPI4 IPS 160nits TFT LCD Display Module
This single-display module is suitable for use in MB products .The LCD adopts one backlight with High brightness 2-lamps white LED. Construction: 1.3〞a-Si color TFT-LCD ,White LED backlight, FPC .Thi...
2.3 Inch 320x240 QVGA 40PIN MUC TN 300nits TFT LCD Display Module
EX02301-A01 is a 2.3 inch, TN TFT LCD module with transmissive mode. Its resolution is 320x240dots (320 vertical by 240 horizontal pixel) and every pixel is made up of three vertical strips of Red, Gr...
4.3 Inch 480X800 WVGA 50PIN RGB IPS 300nits TFT LCD Display Module
EX04301-A01 is a 4.3-inch diagonal 480x800 portrait standard TFT LCD display module. The dimension size of this module is 62.86(W)×105.75(H) mm, size of active area is 56.16(W)×93.6（H） mm. This IPS TFT disp...
