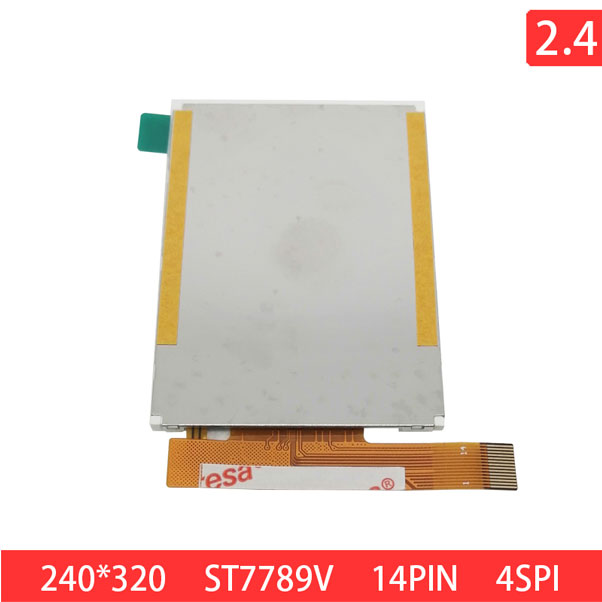

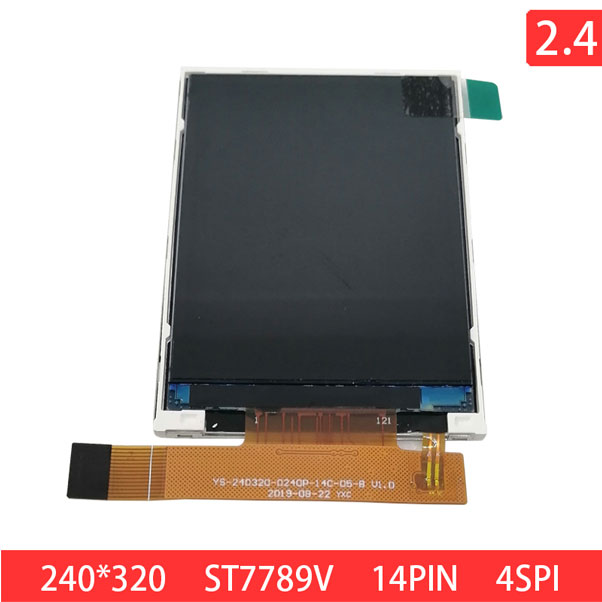

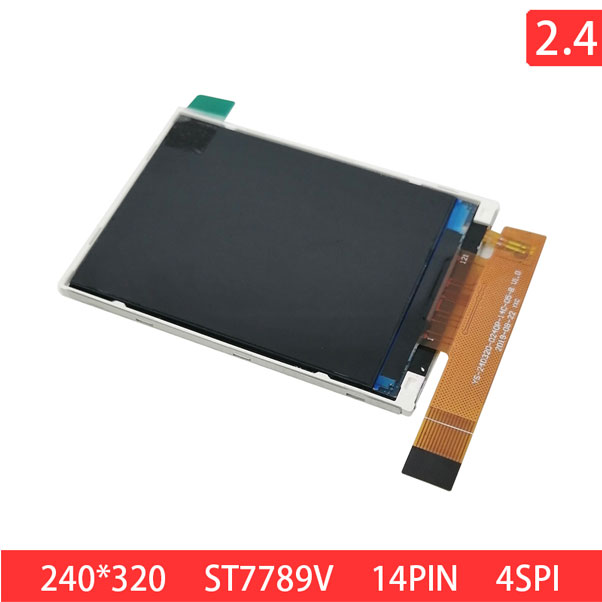

EX02401-A01 is a 2.4 inch, IPS active matrix TFT LCD module with transmissive mode. The module dimension is 42.72(W)×60.40(H)mm; active area 36.72(W)×48.96(H) mm (2.4"diagonal). Its resolution is 240x320 pixels (width 240pixels x height 320 pixels) and every pixel is made up of three vertical strips of Red, Green and Blue dots.
No. | Item | Specification |
1 | LCD size | 2.4 inch |
2 | Resolution | 240(RGB)×320 |
3 | Active area | 36.72(W)×48.96(H) |
4 | Module size | 42.72(W)×60.40(H)×2.21(T)(Exclude FPC) |
5 | Viewing Direction | All |
6 | Driver IC | ST7789V |
7 | Polarizer | Transmissive |
8 | Interface | 4-SPI |
| 9 | Brightness | 250cd/m2 |
| 10 | Back Light | White |
| 11 | Pixel arrangement | RGB vertical stripe |
The module features wide viewing angle thanks to the IPS panel which is one of the most popular techniques on the market now. This 2.4 inch TFT LCD display module has built-in IC ST7789V supporting SPI interface. The brightness is 250 cd/m2 with contrast ratio 800:1. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃..This single-display module is suitable for use in industry, household appliances, toys and medical treatment,small consumer electronics and other fields.

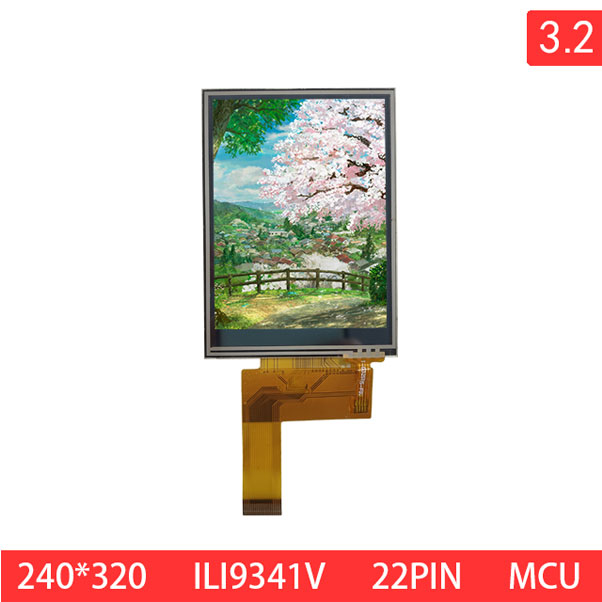

3.2 Inch 240X320 QVGA 22PIN MCU IPS 300nits TFT LCD Display Module
EX03201-A01 is a 3.2-inch diagonal 240x320 portrait standard TFT LCD display module. The dimension size of this module is 55.04×77.5 mm, size of active area is 48.6×64.7 mm. This TFT display module ...
3.5 Inch 320x480 HVGA 6PIN UART TN 220nits TFT LCD Display Module
EX03505-A01 is a 3.5-inch color TFT display module with resolution of 320x480 pixels. The brightness is 220 cd/m2 and the contrast ratio is 400:1 (typical value). LCM voltage ranges from 3 V~5V. Opera...

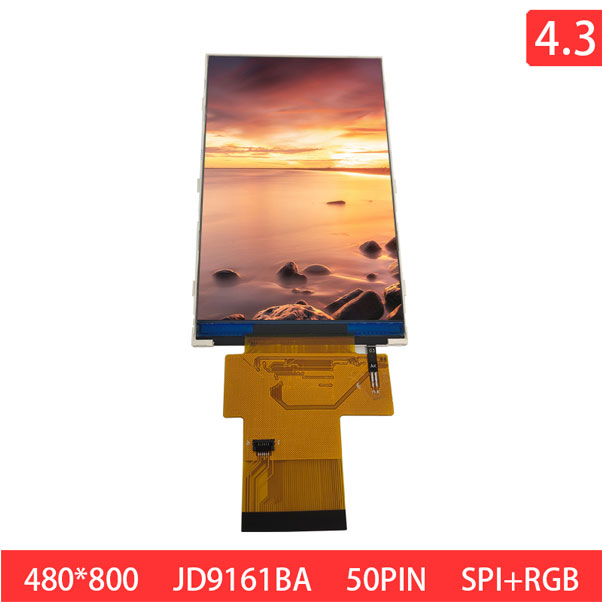

4.3 Inch 480X800 WVGA 50PIN RGB IPS 300nits TFT LCD Display Module
