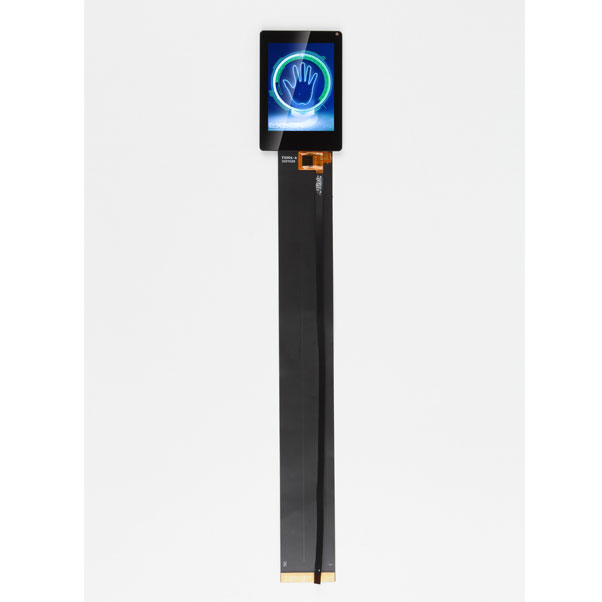

2 Inch LCD Screen 240x320 QVGA 50PIN RGB IPS 300nits TFT LCD Display Module

This single-display module is suitable for use in Automobile products.

The 2 Inch LCD Screen adopts one backlight with 3 High brightness white LEDs.

LCD screen module Construction: 2.0" а-Si color TFT-LCD, White LED backlight.

General Specifications of 2 inch lcd screen 240x320 QVGA 50PIN RGB IPS 300nits

No.	Item	Specification
1	LCD size	2.0inch
2	Resolution	240 x3(RGB)X320
3	Display mode	Normally Black, Transmissive
4	Pixel pitch	0.1275 (H) × 0.1275 (V) mm
5	Active area	30.6(H) × 40.8(V) mm
6	LCM size	34.98 (H)X50.57(V)X2.39(D) mm
7	CTPM size	38.60 (H)X56.60(V)X3.39(D) mm
7	Pixel arrangement	RGB-vertical stripe
8	Interface	RGB
9	Surface treatment	Anti-Glare
10	Color arrangement	RGB-stripe
11	View direction(Gray Inversion)	ALL

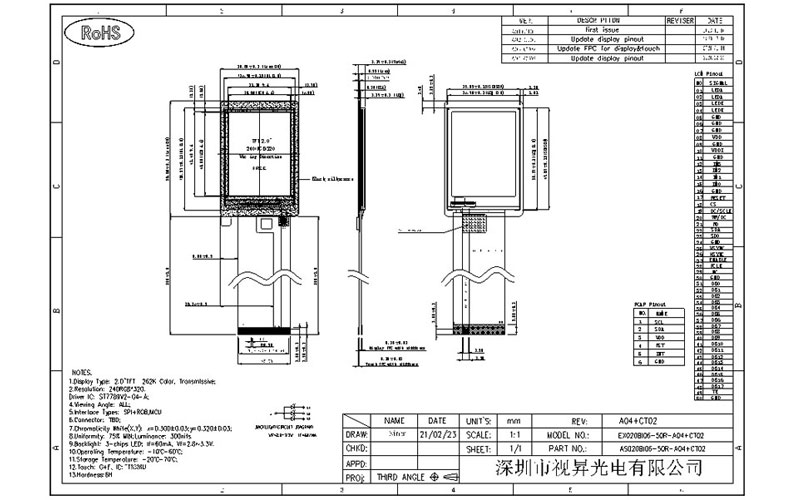

Outline Dimension of 2.0 Inch 240x320 QVGA 50PIN RGB IPS 300nits
