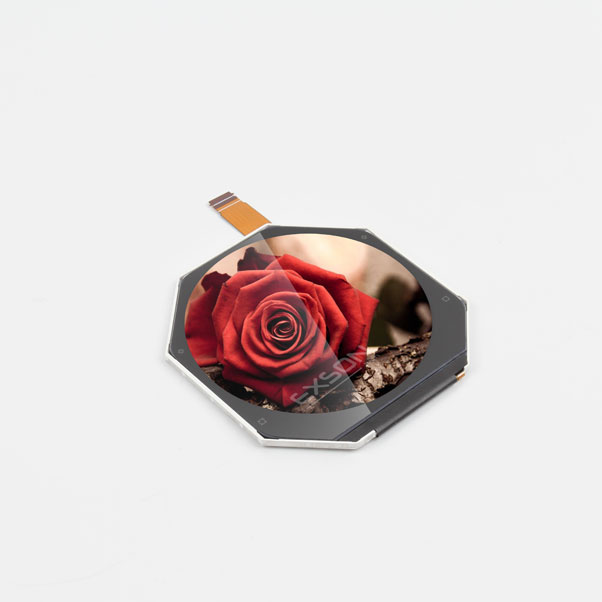

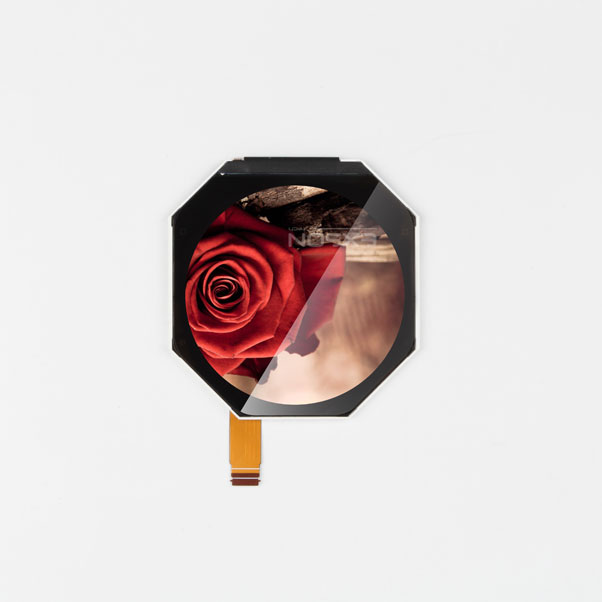

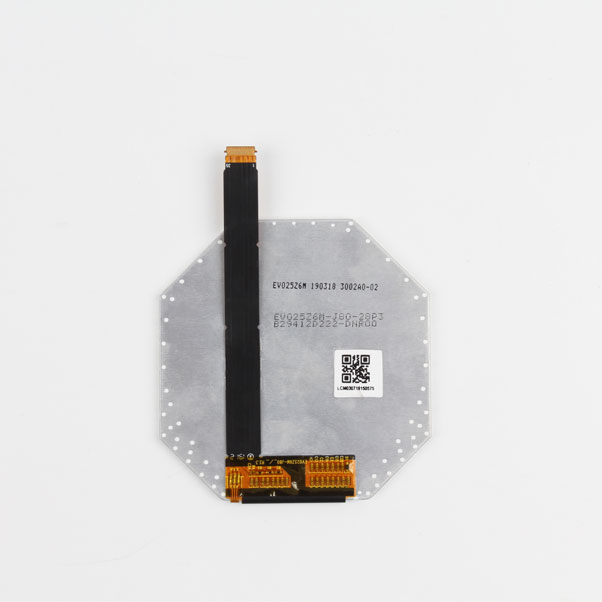

EX02403-A01 is a 2.47 inch, ADS active matrix TFT LCD module with transmissive mode. The module dimension is 69.19(W)×71.74(H)×2.45(T)mm; active area 62.64(W)×62.64(h)(2.47"diagonal). Its resolution is 480x480 pixels (width 480pixels x height 480 pixels) . This 2.47 inch TFT LCD display module has built-in IC HX8370-C supporting MIPI interface. The brightness is 400 cd/m2 with contrast ratio 1000:1. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment, etc.
No. | Item | Specification |
1 | LCD size | 2.47 inch |
2 | Resolution | 480(RGB)×480 |
3 | Active area | 62.64(W)×62.64(h) |

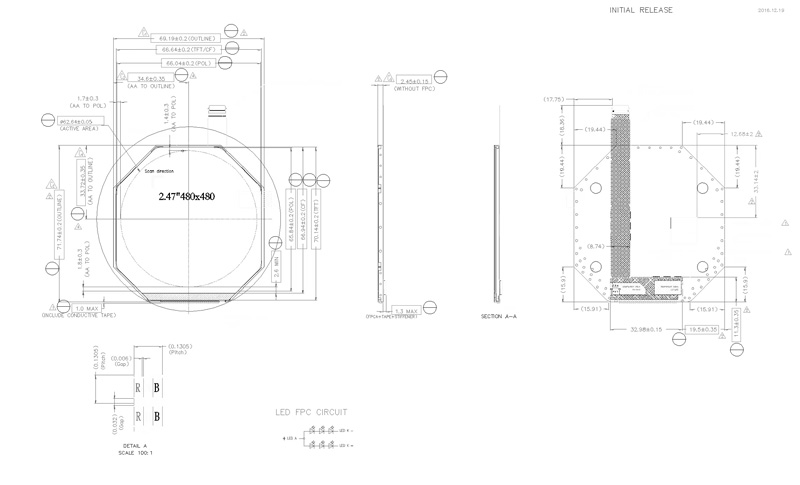

4 | Module size | 69.19(W)×71.74(H)×2.45(T)mm |
5 | Viewing Direction | All |
6 | Driver IC | HX8370-C |
7 | Interface | MIPI |
8 | Brightness | 400cd/m2 |
| 9 | Display Colors | 16.7M |
| 10 | Display Mode | Normally Black, Transmissive |
| 11 | Weight | 25g (Max) |
