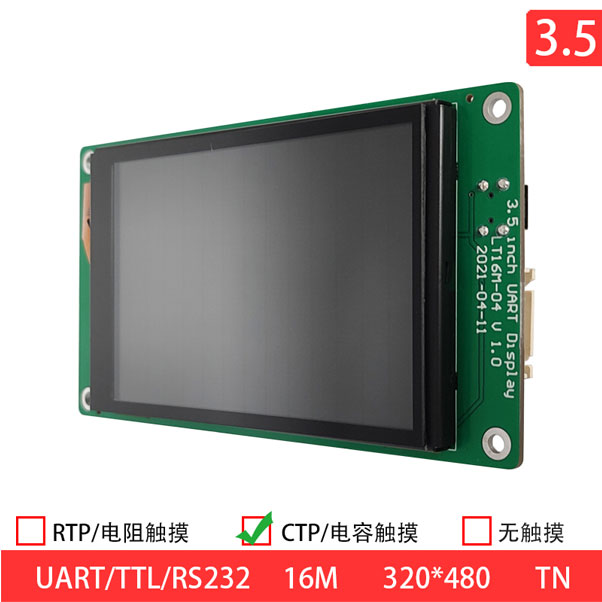

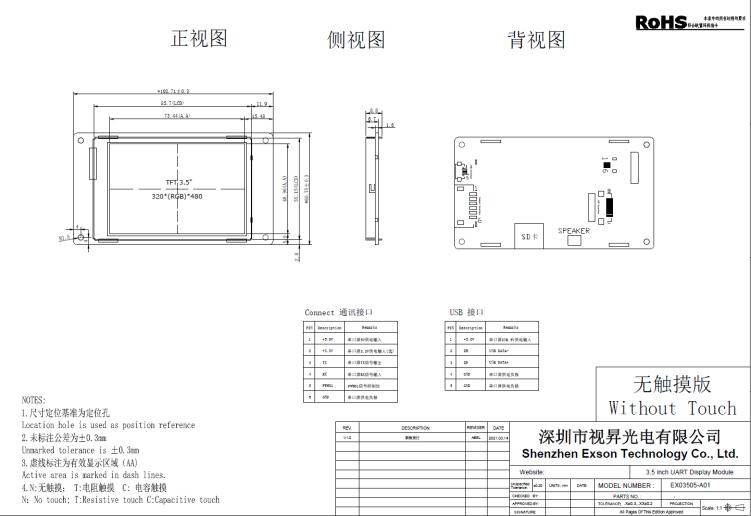

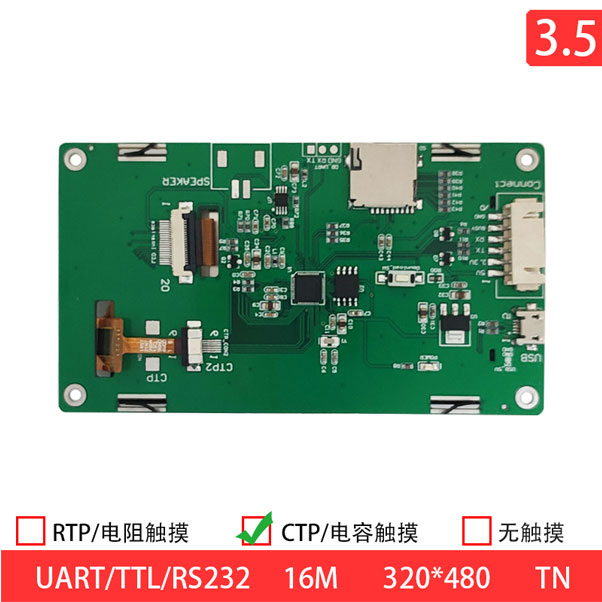

EX03505-A01 is a 3.5-inch color TFT display module with resolution of 320x480 pixels. The brightness is 220 cd/m2 and the contrast ratio is 400:1 (typical value). LCM voltage ranges from 3 V~5V. Operating temperature covers from -20℃~+70℃, storage temperature range is from -30~+80℃. UART TTL Interface LCD Module.This single-display module is suitable for use in industry, household appliances, toys and medical treatment,etc.
No. | Item | Specification |
1 | LCD size | 3.5 inch |
2 | Resolution | 320(RGB)X480 |
3 | Active area | 73.44(W)×48.96(H) |
4 | Module size | 108.71(W)×60.71(H)×8.8(T)mm |
5 | Driver IC | ST7796S |
6 | Interface | TTL |
| 7 | Brightness | 220cd/m2 |
| 8 | Contrast Ratio | 400:1 |
| 9 | Viewing Direction | 3 o'clock |
| 10 | Operating temperature | -20℃-70℃ |
11 | Storage temperature | -30℃~+80℃ |
