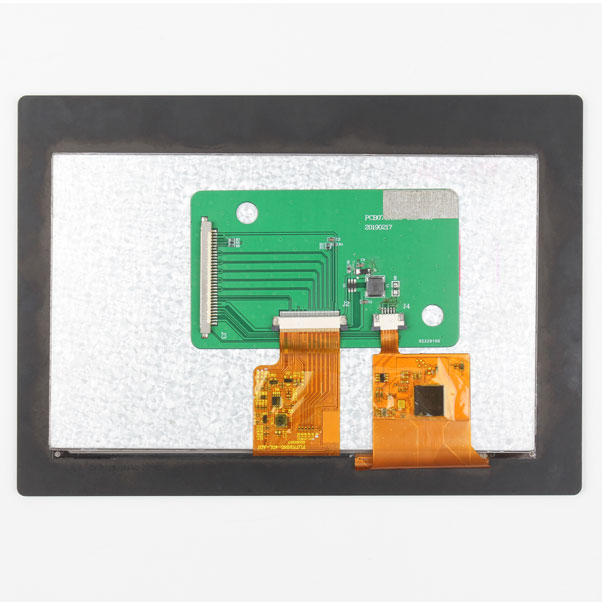

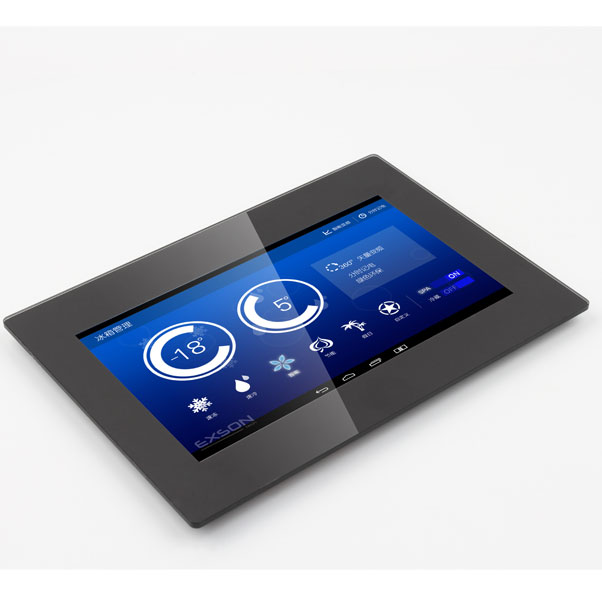

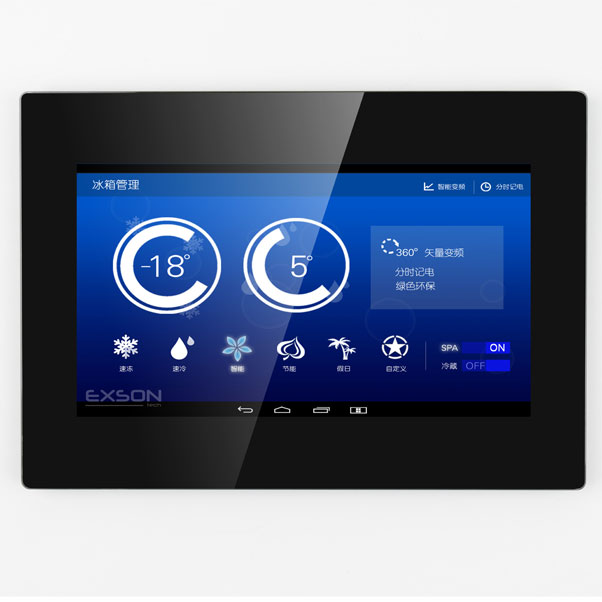

This single-display module is suitable for use in MB products. The LCD adopts one backlight with High brightness 27-lamps white LED. Construction: 7.0〞a-Si color TFT-LCD ,White LED backlight, FPC.
No. | Item | Specification |
1 | LCD size | 7.0 inch |
2 | Resolution | 1024 (RGB)X600 |
3 | Display mode | Normally black |
4 | Pixel pitch | 0.1506RGB(H)X 0.1432(V) mm |
5 | Active area | 154.21(H) × 85.92 (V) mm |
6 | Module size | 193.00(H)×136.00(V)×7.00(D) mm |
7 | Pixel arrangement | RGB-stripe |
8 | Interface | LVDS |
5.0 Inch 800x480 WVGA 40PIN TTLTN 350nits TFT LCD Display Module
EX05002-A01 is a 5.0 inch TTL TN TFT LCD module,its resolution 800(RGB)×480，Interface UART RS232/TTL,Brightness 220 nits,Controller Datasheet:ST7262.This single-display module is suitable for use in auto...
4.3 Inch 480x272 HVGA 6PIN UART TN 220nits TFT LCD Display Module
EX04302-A01 is a 4.3-inch color TFT display module with resolution of 480x272 pixels. The brightness is 220 cd/m2 and the contrast ratio is 400:1 (typical value). LCM voltage ranges from 3.3 V~5.0V. O...
4.3 Inch 480X800 WVGA 50PIN RGB IPS 300nits TFT LCD Display Module
EX04301-A01 is a 4.3-inch diagonal 480x800 portrait standard TFT LCD display module. The dimension size of this module is 62.86(W)×105.75(H) mm, size of active area is 56.16(W)×93.6（H） mm. This IPS TFT disp...
