In the HR series, the rollers are increased in both size and number giving it an even higher load capacity. They are generally mounted in pairs in a manner similar to single-row angular contact ball bearings. In this case, the proper internal clearance can be obtained by adjusting the axial distance between the cones or cups of the two opposed bearings. Since 0.96 LCD IPS TFT are separable, the cone assemblies and cups of tft module can be mounted independently.

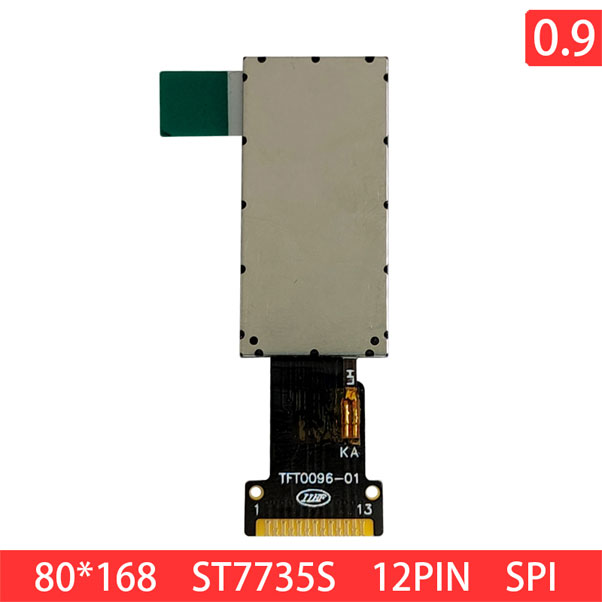

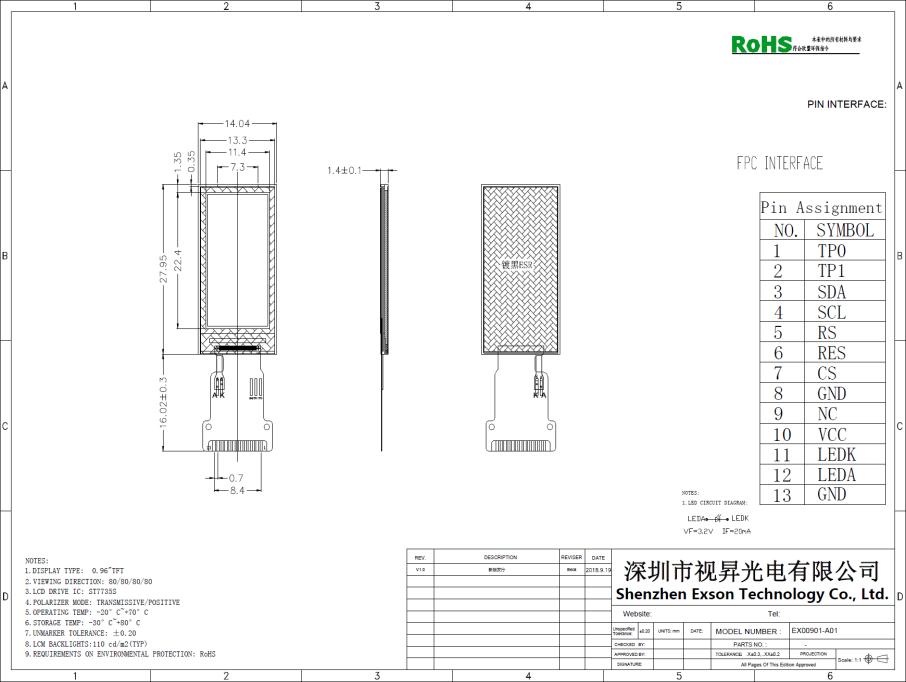

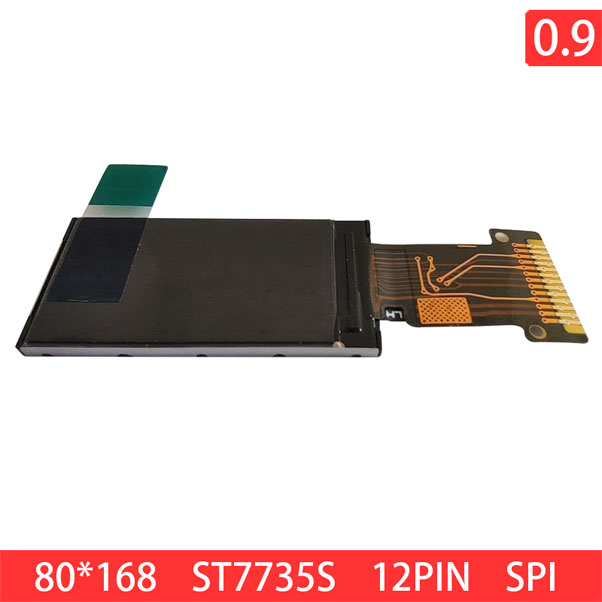

EX00901-A01 0.96 LCD IPS TFT is a mini, 0.96-inch, IPS active matrix TFT LCD module with transmissive mode. The module dimension is14.04x27.95 mm; active area 10.8 x 21.7 mm (0.96"diagonal). Its resolution is 80x160 pixels (width 80 pixels x height 160 pixels) and every pixel is made up of three vertical strips of Red, Green and Blue dots. The module features wide viewing angle thanks to the IPS panel which is one of the most popular techniques on the market now. This mini 0.96-inch TFT LCD display module has built-in IC ST7735S supporting SPI interface. The brightness is 110 cd/m2 with contrast ratio 1000:1. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃. This single-display module is suitable for use in wearable, mobile devices, smart home and other products.
No. | Item | Specification |
1 | LCD size | 0.96inch |
2 | Resolution | 80(RGB)×160 |
3 | Display mode | Normally White |
4 | Eyes Viewing Direction | 80/80/80/80 |
5 | Active area | 10.8(W)×21.7(H)mm |
6 | Module size | 14.04(W)×27.95(H)×1.35(T)(Exclude FPC)mm |
7 | Pixel arrangement | RGB vertical stripe |
8 | Interface | SPI4 |
| 9 | Contrast Ratio | 1000:1 |
| 10 | Backlight color | White |
11 | Polarizer | Transmissive |
4.3 Inch 480X800 WVGA 50PIN RGB IPS 300nits TFT LCD Display Module
EX04301-A01 is a 4.3-inch diagonal 480x800 portrait standard TFT LCD display module. The dimension size of this module is 62.86(W)×105.75(H) mm, size of active area is 56.16(W)×93.6（H） mm. This IPS TFT disp...
5.5 Inch 800x1280 HD HDMI+USB IPS 400nits TFT LCD Display Module
This single-display module is suitable for use in MB products .The LCD adopts onebacklight with High brightness 14-lamps white LED. Construction: 5.5 〞a-Si color TFT-LCD ,White LED backlight, FPC .
2.0 Inch 480x360 HVGA 24PIN MIPI IPS 250nits TFT LCD Display Module
EX02002-A01 is a 2.0inch, IPS TFT LCD module with transmissive mode. Its resolution is 480×360dots (480 vertical by 360 horizontal pixel) and every pixel is made up of three vertical strips of Red, G...
