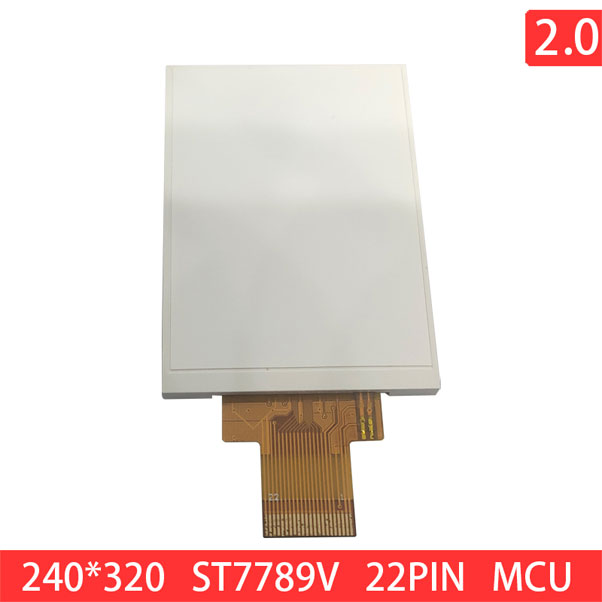

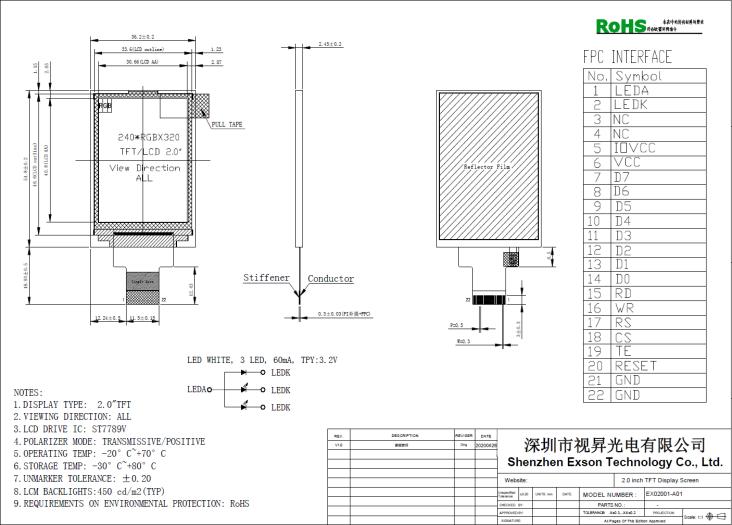

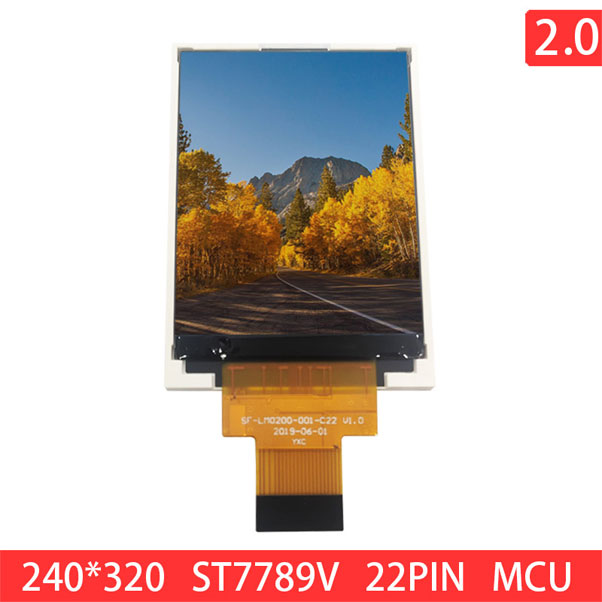

A simple 2.0″, The brightness is 450cd/m2 with contrast ratio 800:1, IPS Module, Transmissive, All Viewing Direction, Normal Black with 240 x 320 dots. Operating temperature covers from -20℃~+70℃, storage temperature range is from -30℃~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment, etc.
No. | Item | Specification |
1 | LCD size | 2.0inch |
2 | Resolution | 240(RGB)×320 |
3 | Active area | 30.66(W)×40.8(H)mm |
4 | Module size | 36.2(W)×51.8(H)×2.45(T)(Exclude FPC)mm |
5 | Interface | MCU |
6 | Viewing Direction | All |
7 | Polarizer | Transmissive |
8 | Contrast Ratio | 800:1 |
| 9 | Brightness | 450cd/m² |
| 10 | Back Light | White |
11 | Pixel arrangement | RGB vertical stripe |

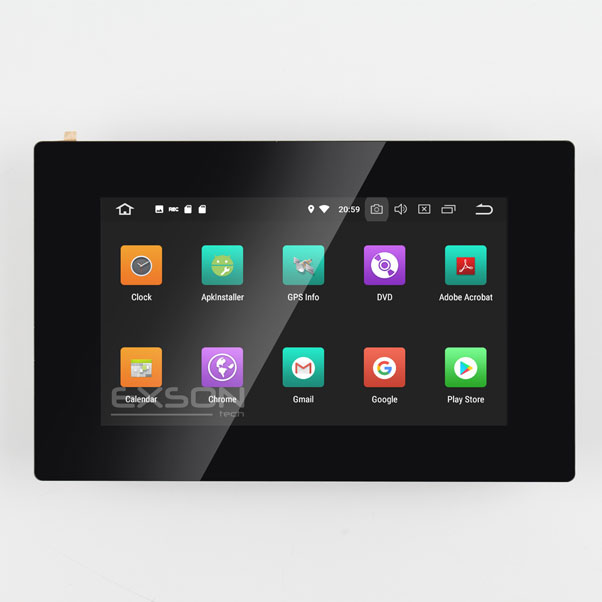

7.0 Inch 1024x600 WSVGA 40PIN LVDS IPS 450nits 2 TFT LCD Display Module
This single-display module is suitable for use in MB products. The LCD adopts one backlight with High brightness 27-lamps white LED. Construction: 7.0〞a-Si color TFT-LCD ,White LED backlight, FPC.

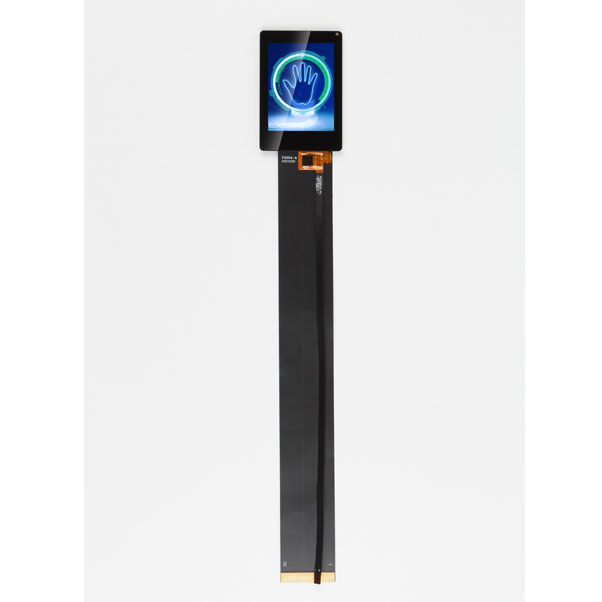

2.3 Inch 320x240 QVGA 40PIN MUC TN 300nits TFT LCD Display Module
EX02301-A01 is a 2.3 inch, TN TFT LCD module with transmissive mode. Its resolution is 320x240dots (320 vertical by 240 horizontal pixel) and every pixel is made up of three vertical strips of Red, Gr...

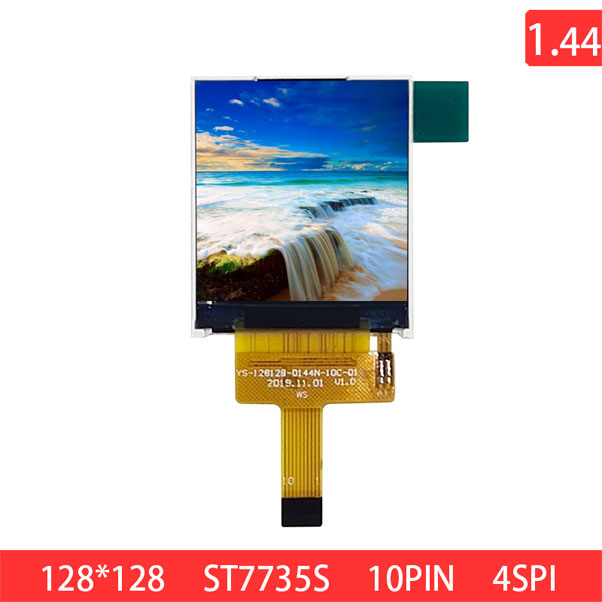

1.44 Inch 128x128 SQQVGA 10PIN SPI4 TN 250nits TFT LCD Display Module
A simple 1.44″ Medium Brightness 250cd/m2 ,TN Module, Transmissive ,12 o’clock Viewing Direction ,Normal White with 128 x 128 dots.Operating Temp: -20℃ to 70℃,Storage Temp: -30℃ to 80℃，ROHS Complian...
