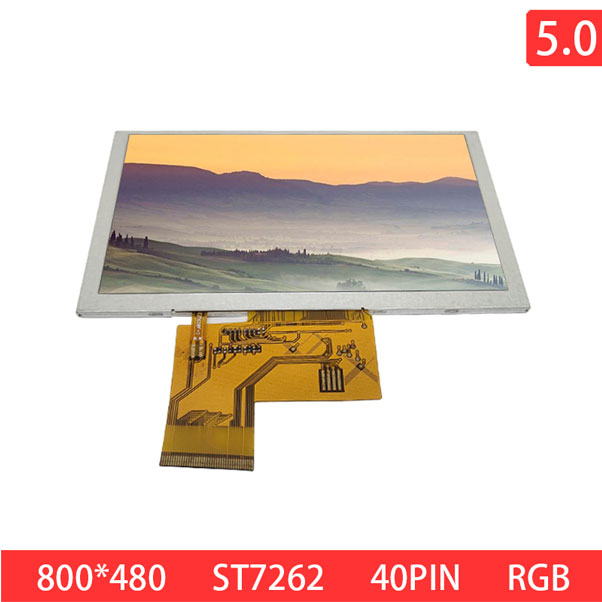

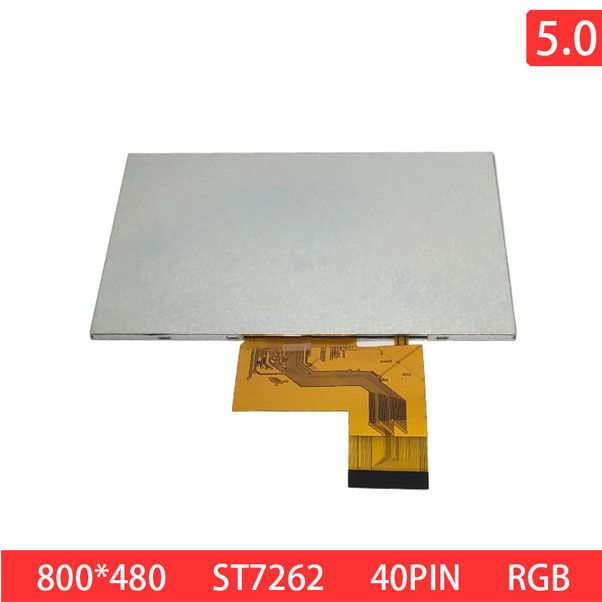

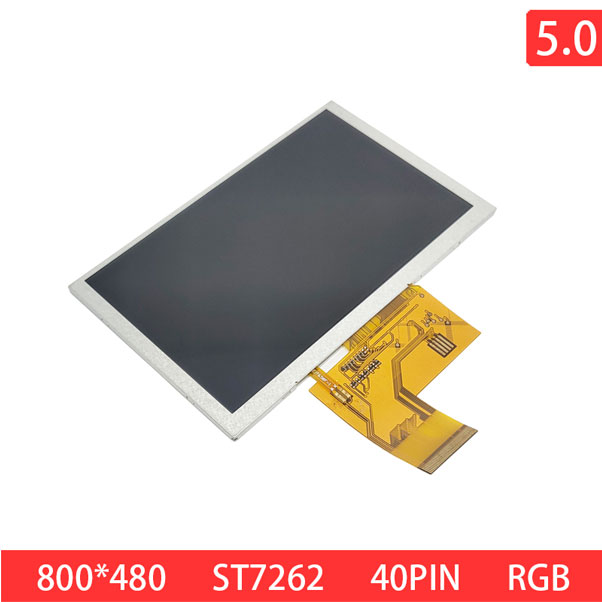

A simple 5.0″ High Brightness, Sunlight Readable IPS Module, Transmissive, All Viewing Direction, Normal Black with 800 x (RGB) x 480 dots. This single-display module is suitable for use in handheld terminals, high-end mobile phones, face recognition, etc.
No. | Item | Specification |
1 | LCD size | 5.0 inch |
2 | Resolution | 800(RGB)×480 |
3 | Active area | 108(W)×64.8(H)mm |

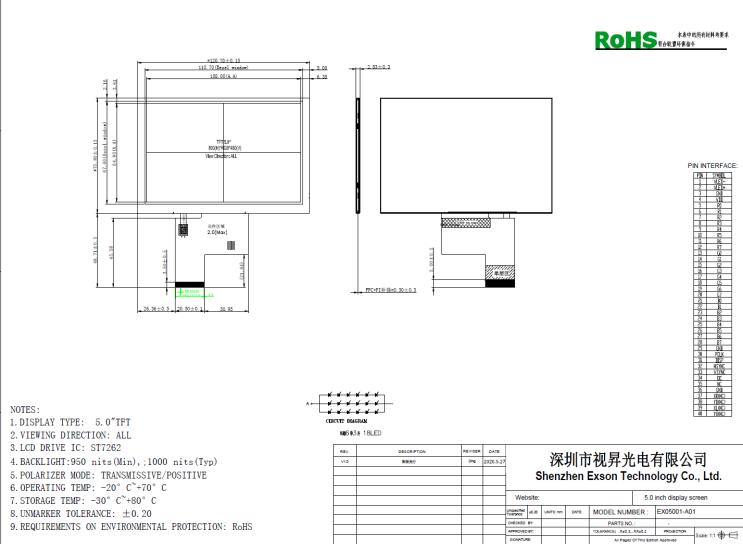

4 | Module size | 120.7(W)×75.8(H)×2.83(T)(Exclude FPC)mm |
5 | Contrast Ratio | 1500:1 |
6 | Display mode | Normally Black/IPS |
7 | Interface | RGB24 |
8 | Brightness | 1000cd/m2 |
9 | Back Light | White |
10 | Driver IC | ST7262 |
11 | Viewing angle | All |
12 | Polarizer | Transmissive |
7.0 Inch 1200x1920 WUXGA 40PIN MIPI IPS 1500nits TFT LCD Display Module
This module is color active matrix TFT LCD that uses Low-temperature poly-silicon TFT as a switching device. It is composed of a TFT LCD cell, IC, FPC, Backlight and CTP. And it has a 7.02(10:16) inch...
5.0 Inch 1080x1920 FHD 31PIN MIPI 1600nits TFT LCD Display Module
This single-display module is suitable for use in MB products. The LCD adopts one backlight with High brightness 40-lamp white LED. Construction: 5.0〞LTPS color TFT-LCD ,White LED backlight, FPC.
7.0 Inch 1200x1920 WUXGA 40PIN MIPI IPS 650nits TFT LCD Display Module
This module is color active matrix TFT LCD that uses Low-temperature poly-silicon TFT as a switching device. It is composed of a TFT LCD cell, IC, FPC, Backlight and CTP. And it has a 7.02(10:16) inch...
