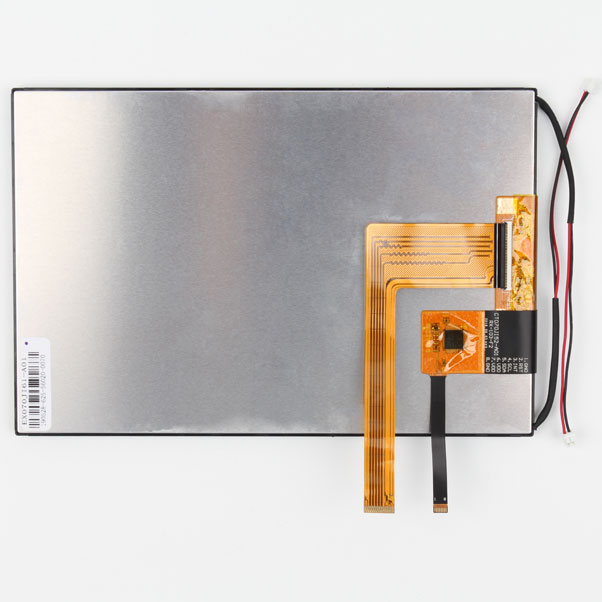

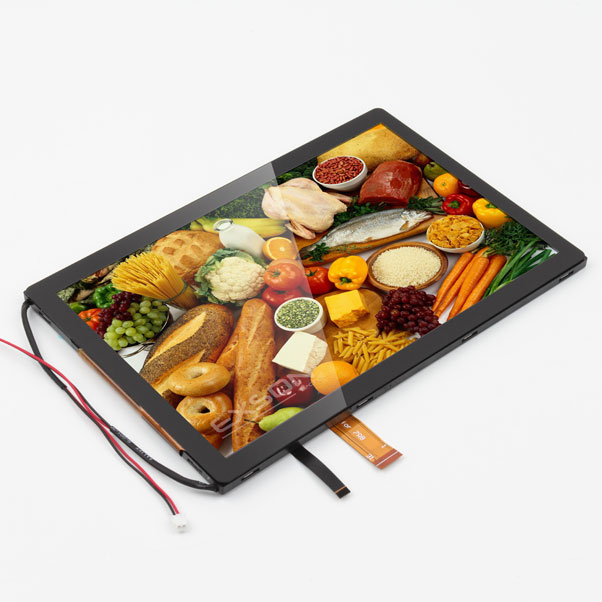

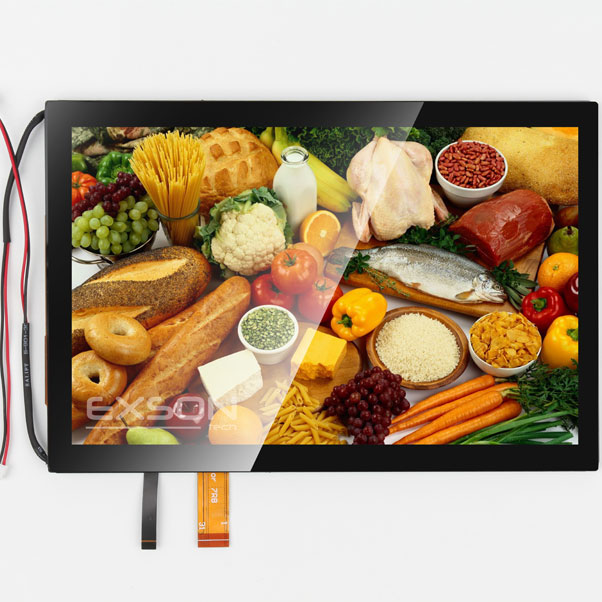

This module is color active matrix TFT LCD that uses Low-temperature poly-silicon TFT as a switching device. It is composed of a TFT LCD cell, IC, FPC, Backlight and CTP. And it has a 7.02(10:16) inch diagonally measured active display area with WUXGA(1200 horizontal by1920 vertical pixel) resolution.
No. | Item | Specification |
1 | LCD size | 7.02inch |
2 | Resolution | 1200 (RGB)X1920 |
3 | Display mode | Normally black |
4 | Pixel pitch | 0.07875RGB(W)X0.07875(H) mm |
5 | Active area | 94.50 (W)X151.20(H) mm |

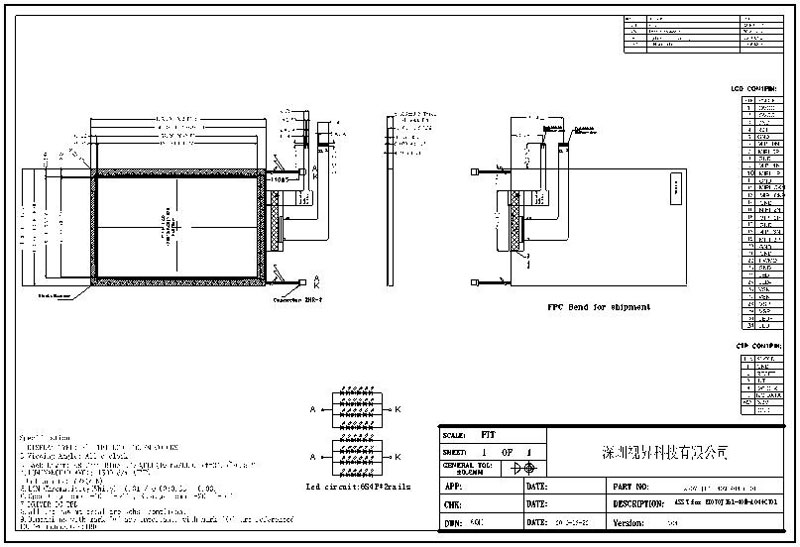

6 | Module size | 111.26(W)X166.60(H)X5.34 (D)mm |
7 | Pixel arrangement | RGB-stripe |
8 | Interface | MIPI |
9 | Backlight power consumption | 11.68 w |
10 | Panel power consumption | Typ. 0.14 w (max. 0.17w) |
