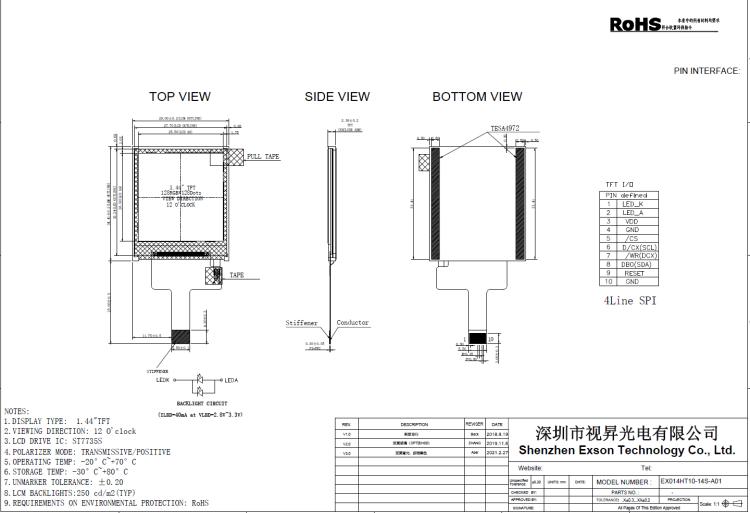

A simple Arduino TN TFT 1.44″ Medium Brightness, TN Mode, Transmissive, 12 o’clock Viewing Direction with 128 x 128 dots, 4-wire SPI Interface.Operating Temp: -20°C to 70°C,Storage Temp: -30°C to 80°C,Controller Datasheet: ST7735S.It is Suitable for smart wear, smart watch, industry, home appliances, toys, medical treatment, etc.
No. | Item | Specification |
1 | LCD size | 1.44 inch |
2 | Resolution | 128(RGB)×128 |
3 | Active area | 25.5(W)×26.5(H)mm |
4 | Module size | 29(W)×34.41(H)×2.39(T)(Exclude FPC)mm |
5 | Interface | SPI |
6 | Brightness | 250cd/m2 |
7 | Contrast Ratio | 800:1 |
8 | Driver IC | ST7735S |
9 | Viewing Direction | 12 O’CLOCK |
10 | Back Light | White |
| 11 | Polarizer | Transmissive |
12 | Display mode | Normally White |
1.54 Inch 320x320 Square SQVGA 24PIN 4 Wire SPI IPS 300nits TFT LCD Display Module
A simple Arduino IPS TFT 1.54″ Medium Brightness, IPS Mode, Transmissive, All Viewing Direction with 320 x 320 dots, 4-wire SPI Interface. Operating Temp: -20°C to 70°CStorage Temp: -30°C to 80°C...
2.47 Inch 480x480 Round 35PIN MIPI 400nits TFT LCD Display
EX02403-A01 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel, a driving circui...
1.3 Inch 240x240 Square 13PIN 4 Wire SPI IPS 160nits TFT LCD Display Module
This single-display module is suitable for use in MB products .The LCD adopts one backlight with High brightness 2-lamps white LED. Construction: 1.3〞a-Si color TFT-LCD ,White LED backlight, FPC.
