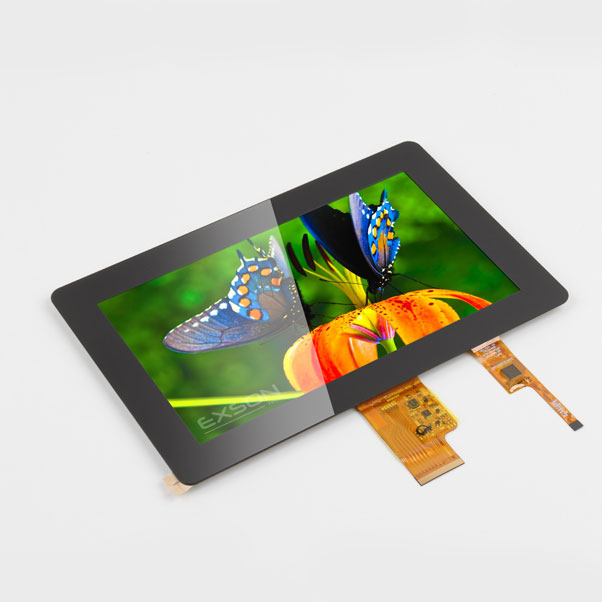

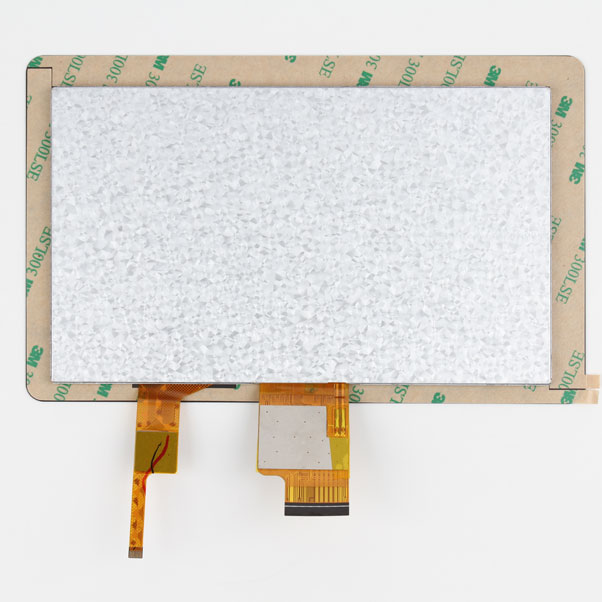

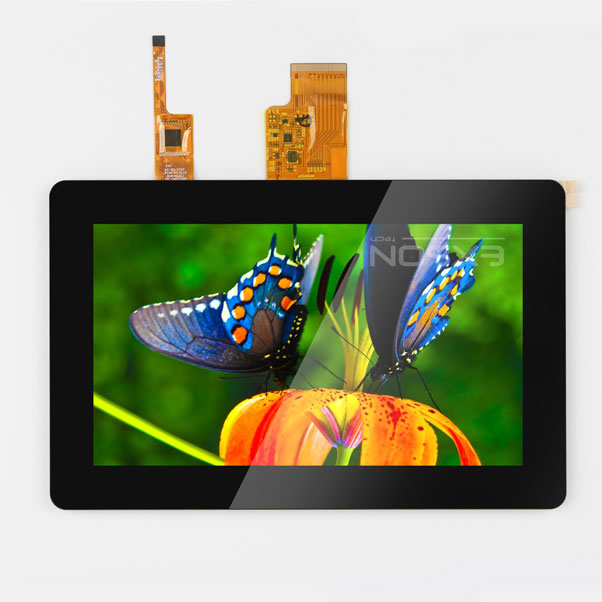

This single-display 7 Inch LCD Screen TFT LCD Display Module is suitable for use in Industrial control.
products. The lcd screen module adopts one backlight with 27 High brightness white LEDs.
Construction: 7.0〞а-Si color TFT-LCD ,White LED backlight.
No. | Item | Specification |
1 | LCD size | 7.0 inch |
2 | Resolution | 1024 (RGB)X600 |
3 | Display mode | Normally black |
4 | Pixel pitch | 0.1506RGB(W)X 0.1432(H) mm |
5 | Active area | 154.2144(W) × 85.92 (H) mm |
6 | View area | 154.84(W) × 86.63 (H) mm |
7 | Module Dimension | 165.0(W) × 100.0(H)× 3.5 (D) mm |
8 | Outline Dimension | 185.78(W) × 117.57 (H)× 5.35 (D) mm |
9 | Pixel arrangement | RGB-stripe |
10 | Interface | LVDS |
4.3 Inch 480X800 WVGA 50PIN RGB IPS 300nits TFT LCD Display Module
EX04301-A01 is a 4.3-inch diagonal 480x800 portrait standard TFT LCD display module. The dimension size of this module is 62.86(W)×105.75(H) mm, size of active area is 56.16(W)×93.6（H） mm. This IPS TFT disp...

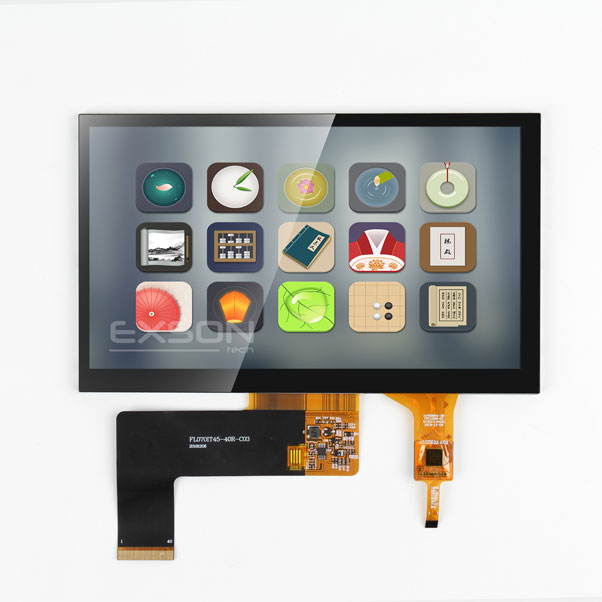

7.0 Inch 1024x600 WSVGA 40PIN HDMI+USB IPS 450nits TFT LCD Display Module
This single-display module is suitable for use in MB products .The LCD adopts one backlight with High brightness 27-lamps white LED. Construction: 7.0〞a-Si color TFT-LCD ,White LED backlight, FPC.

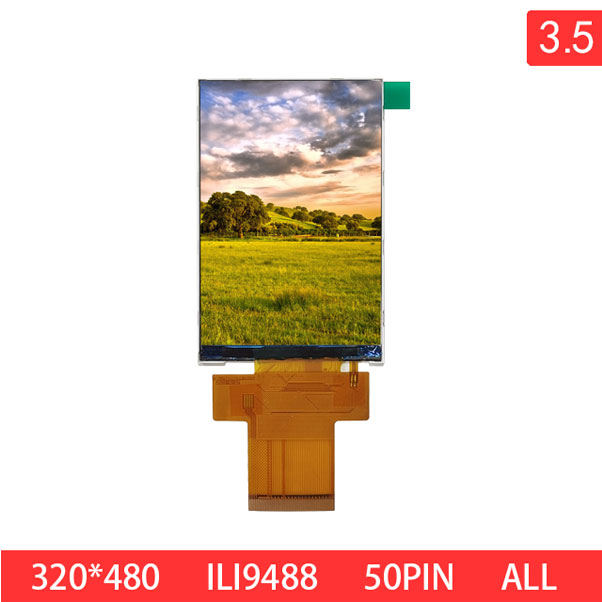

3.5 Inch 320x480 HVGA 50PIN RGB TN 350nits TFT LCD Display Module
EX03502-A01 is a 3.5-inch color active matrix TFT liquid crystal display. The module supports RGB interface and brightness 350 cd/m2. EX03502-A01 RGB TFT LCD display module ,Operating temperature ran...
