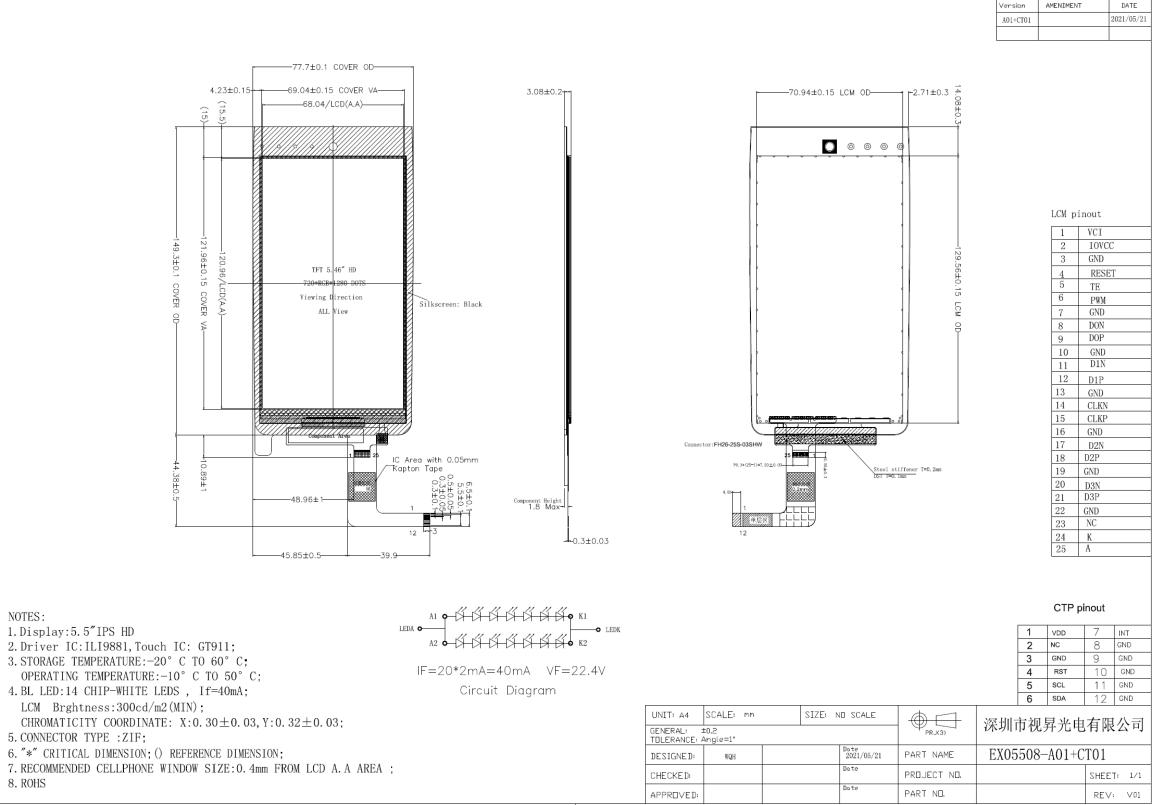

This single-display module is suitable for use in MB products .The LCD adopts onebacklight with High brightness 14-lamps white LED. Construction: 5.5 〞a-Si color TFT-LCD ,White LED backlight, FPC .
Item | Specifications |
LCD size | 5.5 inch |
Resolution | 720 (RGB)X1280 |
Active area | 68.04 (W)X120.96(H) mm |
Module size | 70.94(W)X129.56(H)X1.60(D)mm |
| Contrast Ratio | 900:1 |
| Interface | Normally black |
| Brightness | MIPI |
| Pixel arrangement | 400cd/m2 |
| Driver IC | ILI9881 |
| Viewing angle | 80/80/80/80 |
5.0 Inch 800x480 WVGA 6PIN UART TN 250nits TFT LCD Display Module
EX05003-A01 is a 5.0 inch, UART TN TFT LCD module . The module dimension is 81.85(W)×150(H); active area 64.8(W)×108(H) mm (5.0"diagonal). Its resolution is 800x480 pixels (width 800pixels x he...
3.2 Inch 240X320 QVGA 22PIN MCU IPS 300nits TFT LCD Display Module
EX03201-A01 is a 3.2-inch diagonal 240x320 portrait standard TFT LCD display module. The dimension size of this module is 55.04×77.5 mm, size of active area is 48.6×64.7 mm. This TFT display module ...
5.0 Inch 800x480 WVGA 40PIN TTLTN 350nits TFT LCD Display Module
EX05002-A01 is a 5.0 inch TTL TN TFT LCD module,its resolution 800(RGB)×480，Interface UART RS232/TTL,Brightness 220 nits,Controller Datasheet:ST7262.This single-display module is suitable for use in auto...
