23.6 Inch 1920x1080 FHD 30PIN LVDS-Double IPS 600nits TFT LCD Display Module

Name: 23.6 Inch 1920x1080 FHD 30PIN LVDS-Double IPS 600nits TFT LCD Display Module
Brand: Shenzhen EXSON Technology CO., LTD.

This single-display module is suitable for use in Automobile products.

The LCD adopts one backlight with 128 High brightness white LEDs.

Construction: 23.6〞 а-Si color TFT-LCD ,White LED backlight.

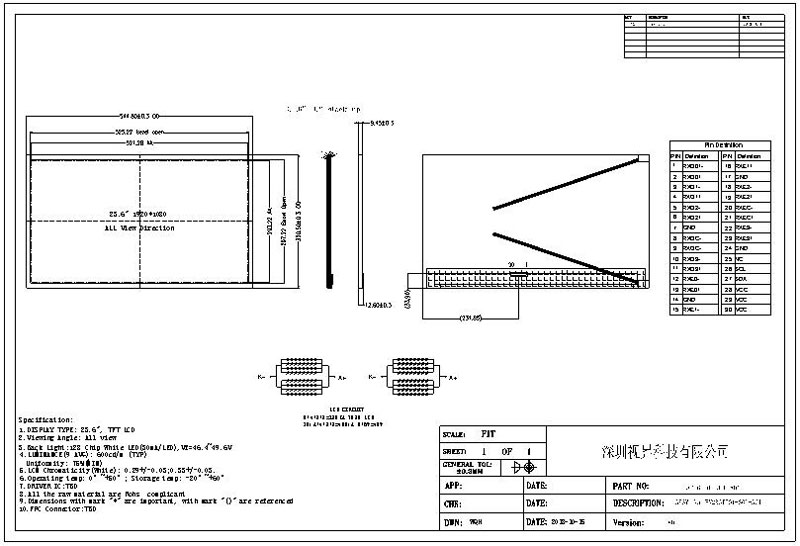

General Specifications of 23.6 Inch 1920x1080 FHD 30PIN LVDS-Double IPS 600nits

No.	Item	Specification
1	LCD size	23.6 inch
2	Resolution	1920 (RGB)X1080
3	Display mode	Normally Black
4	Pixel pitch	0.2715(W) x 0.2715(H) mm
5	Active area	521.28 (W)X293.22 (H) mm
6	Module size	544.8(W)X320.5(H)X9.45(D) mm
7	Pixel arrangement	RGB-vertical stripe
8	Interface	LVDS
9	Backlight power consumption	23.04 w
10	Panel power consumption	TBD
11	Weight	511.6 g (Typ); 529.5 g (Max)
