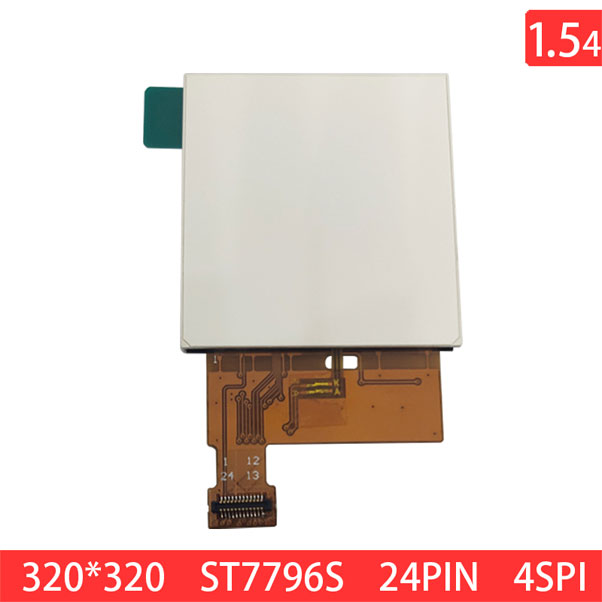

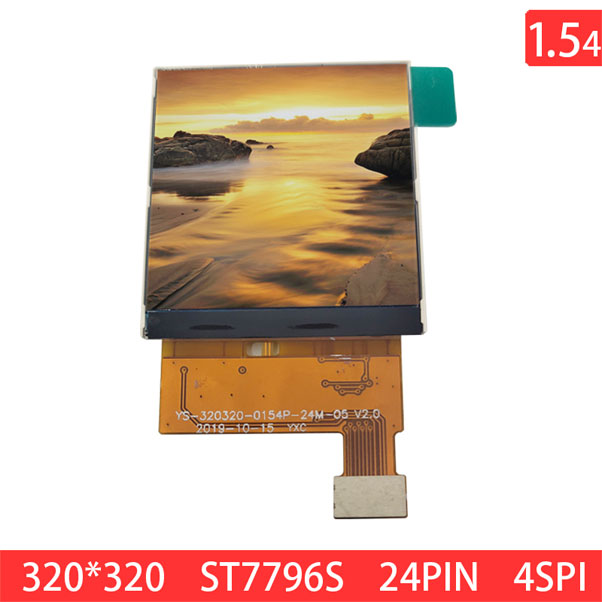

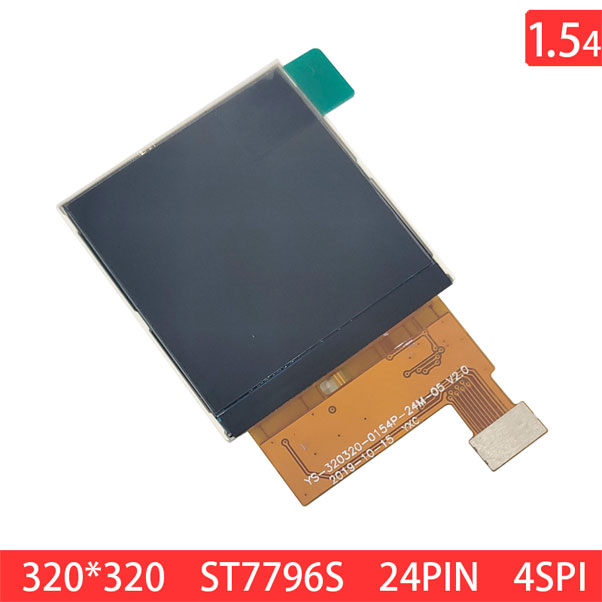

A simple 1.54 LCD Brightness 300cd/m2 ,IPS Module, Transmissive , All Viewing Direction , Normal White with 320×320dots.The highest quality product at the lowest price,Operating Temp: -20℃ to 70℃,Storage Temp: -30℃ to 80℃,ROHS Compliant,Controller Datasheet:ST7789V.This liquid crystal display module is suitable for use in smart wear, smart watches, household appliances, toys, medical treatment, etc.

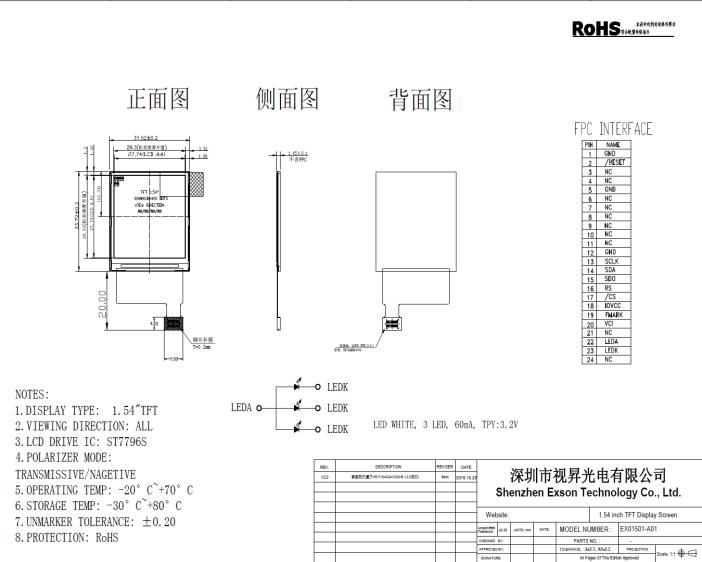

No. | Item | Specification |
1 | LCD size | 1.54inch |
2 | Resolution | 320(RGB)×320 |
3 | Active area | 27.74(W)×27.74(H)mm |
4 | Module size | 31.52(W)×33.72(H)×1.45(T)(Exclude FPC)mm |
5 | Driver IC | ST7789V |
6 | Interface | SPI4 |
7 | Display mode | IPS/ Transmission |
8 | Back Light | White |
| 9 | Viewing Direction | All |
| 10 | Viewing angle | 80/80/80/80 |
11 | Pixel arrangement | RGB vertical stripe |
1.77 Inch 128x160 QQVGA 12PIN TN 300nits TFT LCD Display Module
EX01701-A01 is a 1.77-inch, TN TFT LCD module with transmissive mode. Its resolution is 128x160 dots (128 vertical by 160 horizontal pixel) and every pixel is made up of three vertical strips of Red, ...
4.3 Inch 480X800 WVGA 50PIN RGB IPS 300nits TFT LCD Display Module
EX04301-A01 is a 4.3-inch diagonal 480x800 portrait standard TFT LCD display module. The dimension size of this module is 62.86(W)×105.75(H) mm, size of active area is 56.16(W)×93.6（H） mm. This IPS TFT disp...
3.2 Inch 240X320 QVGA 22PIN MCU IPS 300nits TFT LCD Display Module
EX03201-A01 is a 3.2-inch diagonal 240x320 portrait standard TFT LCD display module. The dimension size of this module is 55.04×77.5 mm, size of active area is 48.6×64.7 mm. This TFT display module ...
